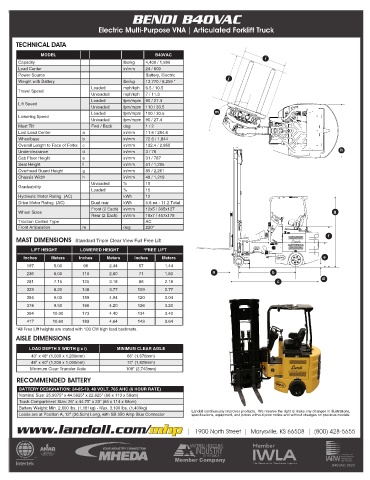

Page 2 - Bendi B40-VAC-Landoll-Forklift-0520

BENDI B40VAC

Electric Multi-Purpose VNA | Articulated Forklift Truck

TECHNICAL DATA

MODEL B40VAC
i
Capacity Ibs/kg 4,400 / 1,996
Load Center in/mm 24 / 600
Power Source Battery, Electric j
Weight with Battery Ibs/kg 13,770 / 6,259 *
Loaded mph/kph 6.5 / 10.5
Travel Speed
Unloaded mph/kph 7 / 11.3
Loaded fpm/mpm 90 / 27.4
Lift Speed
Unloaded fpm/mpm 110 / 33.5
Loaded fpm/mpm 100 / 30.5 m
Lowering Speed
Unloaded fpm/mpm 90 / 27.4
Mast Tilt Fwd / Back deg 1 / 2
Lost Load Center a in/mm 11.6 / 294.6
Wheelbase b in/mm 72.6 / 1,844
Overall Length to Face of Forks c in/mm 122.4 / 2,855
Underclearance d in/mm 3 / 76 h
Cab Floor Height e in/mm 31 / 787
Seat Height f in/mm 51 / 1,295
Overhead Guard Height g in/mm 89 / 2,261
Chassis Width h in/mm 48 / 1,219
Unloaded % 15
Gradeability
Loaded % 15
Hydraulic Motor Rating (AC) kWh 12
Drive Motor Rating (AC) Dual rear kWh 5.6 ea - 11.2 Total
Front (2 Each) in/mm 12x5 / 305x127
Wheel Sizes g
Rear (2 Each) in/mm 18x7 / 457x178
Traction Control Type AC
Front Articulation m deg 220°
f
MAST DIMENSIONS Standard Triple Clear View Full Free Lift
LIFT HEIGHT LOWERED HEIGHT *FREE LIFT
Inches Meters Inches Meters Inches Meters e
197 5.00 96 2.44 57 1.44
236 6.00 110 2.80 71 1.80 a b
d
281 7.15 125 3.18 86 2.18 c
323 8.20 148 3.77 109 2.77
354 9.00 159 4.04 120 3.04
374 9.50 166 4.20 126 3.20
394 10.00 173 4.40 134 3.40
417 10.60 183 4.64 143 3.64
*All Free Lift heights are stated with 100 CM high load backrests.
AISLE DIMENSIONS
LOAD DEPTH X WIDTH (j x i) MINIMUM CLEAR AISLE
40" x 48" (1,000 x 1,200mm) 66" (1,676mm)
48" x 40" (1,200 x 1,000mm) 72" (1,828mm)
Minimum Clear Transfer Aisle 108" (2,743mm)
RECOMMENDED BATTERY
BATTERY DESIGNATION: 24-85-19, 48 VOLT, 765 AHC (6 HOUR RATE)
Nominal Size: 25.9375" x 44.5625" x 22.625" (66 x 113 x 58cm)
Truck Compartment Size: 26" x 44.75" x 23" (66 x 114 x 58cm)
Battery Weight: Min. 2,600 lbs. (1,181kg) - Max. 3,100 lbs. (1,409kg)
Landoll continuously improves products. We reserve the right to make any changes in illustrations,
Leads are at Position A, 12" (30.5cm) Long, with SB 350 Amp Blue Connector specifications, equipment, and prices without prior notice and without changes on previous models.
