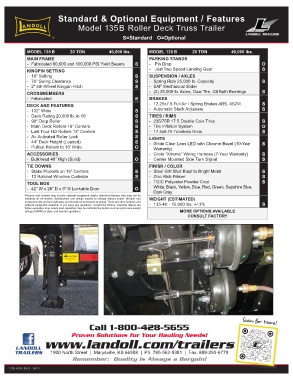

Page 2 - 135B-RollerDeck-Landoll-Trailers-0619

Standard & Optional Equipment / Features

Model 135B Roller Deck Truss Trailer

S=Standard O=Optional

MODEL 135 B 20 TON 40,000 lbs. MODEL 135 B 20 TON 40,000 lbs.
MAIN FRAME PARKING STANDS
- Fabricated 80,000 and 100,000 PSI Yield Beams S - Pin Drop O
KINGPIN SETTING - Jost Two Speed Landing Gear S
- 18” Setting S SUSPENSION / AXLES
- 76” Swing Clearance S - Spring Ride 25,000 lb. Capacity S
- 2" 5th-Wheel Kingpin Hitch S - SAF Mechanical Slider
CROSSMEMBERS - (2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings S
- Fabricated S BRAKES
DECK AND FEATURES - 12.25x7.5 Full Air / Spring Brakes ABS, 4S2M S
- 102” Wide S - Automatic Slack Adjusters S
- Deck Rating 20,000 lb. in 10’ S TIRES / RIMS
- 90º Drop Roller S - 235/75R 17.5 Double Coin Tires S
- Main Deck Rollers 16” Centers S - Tire Inflation System O
- Last Four HD Rollers 13” Centers S - 17.5x6.75 Tubeless Rims S
- Air Activated Roller Lock S LIGHTS
- 44” Deck Height (Loaded) S - Grote Clear Lens LED with Chrome Bezel (10-Year S
- Pullout Rollers to 10’ Wide O Warranty)
ACCESSORIES - Grote “Xtreme” Wiring Harness (7-Year Warranty) S
- Bulkhead 48” High (Solid) O - Center Mounted Side Turn Signal S
TIE DOWNS FINISH / COLOR
- Stake Pockets on 16” Centers S - Steel Grit Shot Blast to Bright Metal S
- 10 Ratchet Winches Curbside S - Zinc Rich Primer S
TOOL BOX - TGIC Polyester Powder Coat S
- 42” W x 28” D x 9” H Lockable Door O White, Black, Yellow, Blue, Red, Green, Sapphire Blue,
Dark Gray
Pictures and content may include optional equipment and/or standard features that may not be
standard on all models. Specification and design subject to change without notice. Weights and WEIGHT (ESTIMATED)
measurements are best estimates and should not be treated as actual. There are other features and
optional equipment available. If you have any questions, consult the factory. Capacity ratings are - 135-46’ - 15,000 lbs. +/-3% S
frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight
ratings (GAWR) or state and federal regulations. MORE OPTIONS AVAILABLE
CONSULT FACTORY
