Pivot Track Nuisance Eliminator

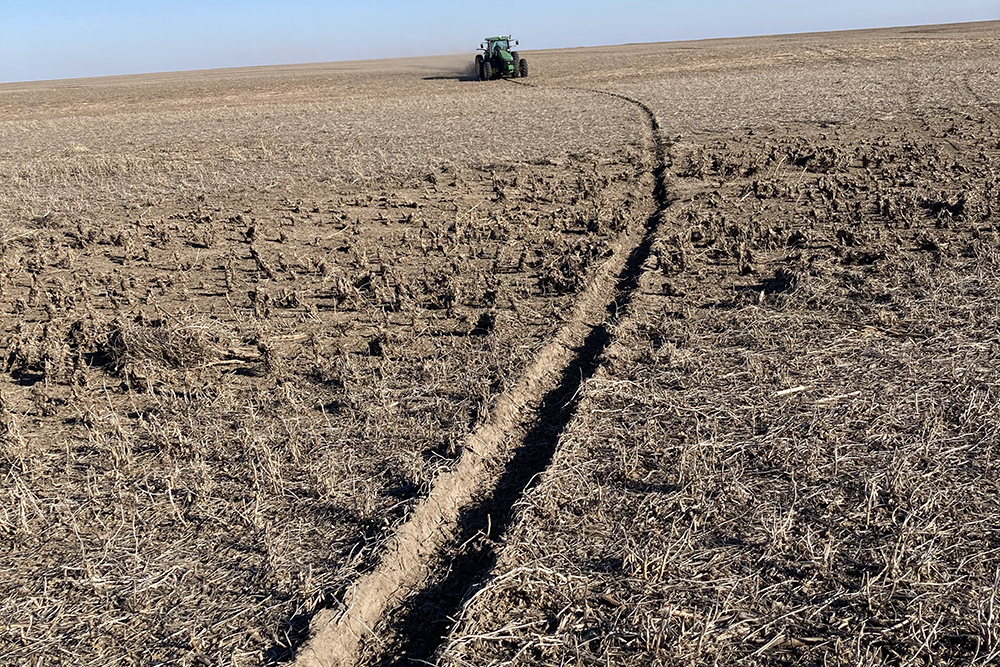

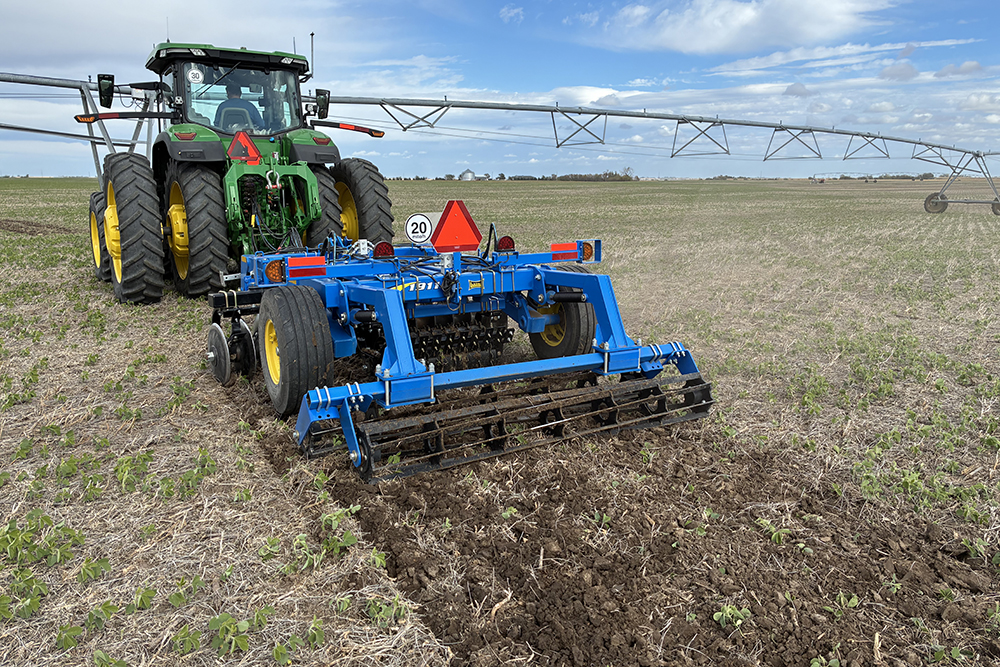

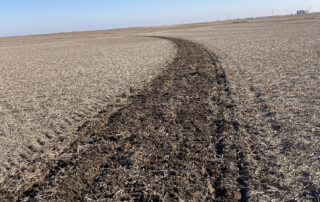

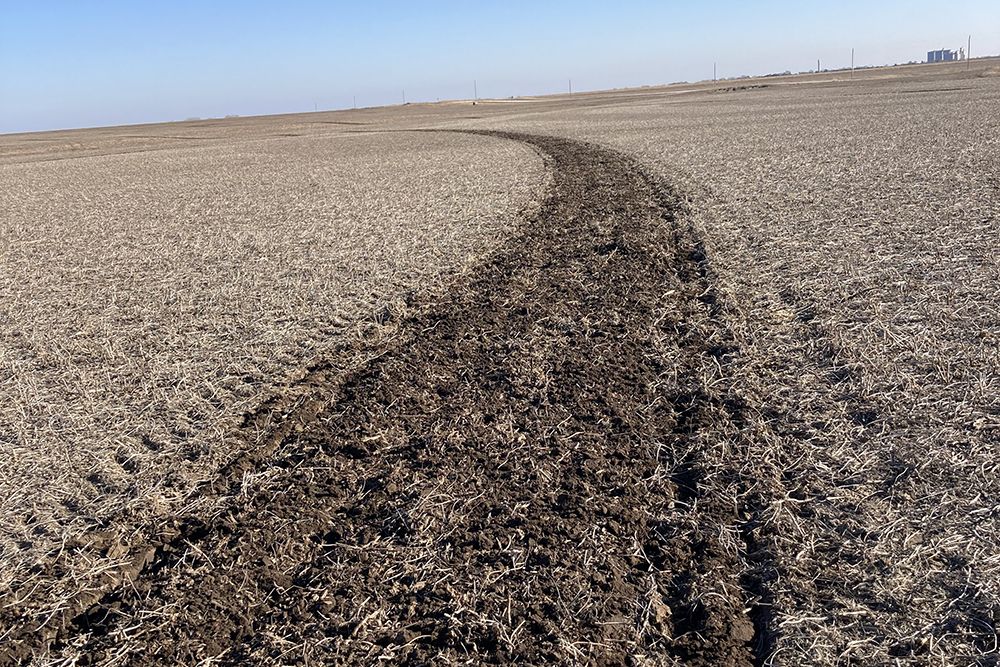

Ruts, tracks, divots, trenches or ditches…no matter what you call them, wheel tracks from irrigation pivot systems are a nuisance and must be addressed before any tillage operation can take place. Customers have asked for a heavy-duty, highly customizable unit that can eliminate pivot tracks completely. The 1900 Series Filloll – Pivot Track Closer from Landoll is up to the task.
Control Your Pivot Track Closing
The 1900 Filloll features an infinitely adjustable gang angle of 10 to 18 degrees, which can be easily adjusted on the go from the comfort of the tractor cab. This adjustability allows for a smooth finished surface for those wanting to do fall primary tillage or a slight berm above the track to allow for settling and perfect conditions for spring tillage.
Heavy-Duty Closer Gets the Job Done

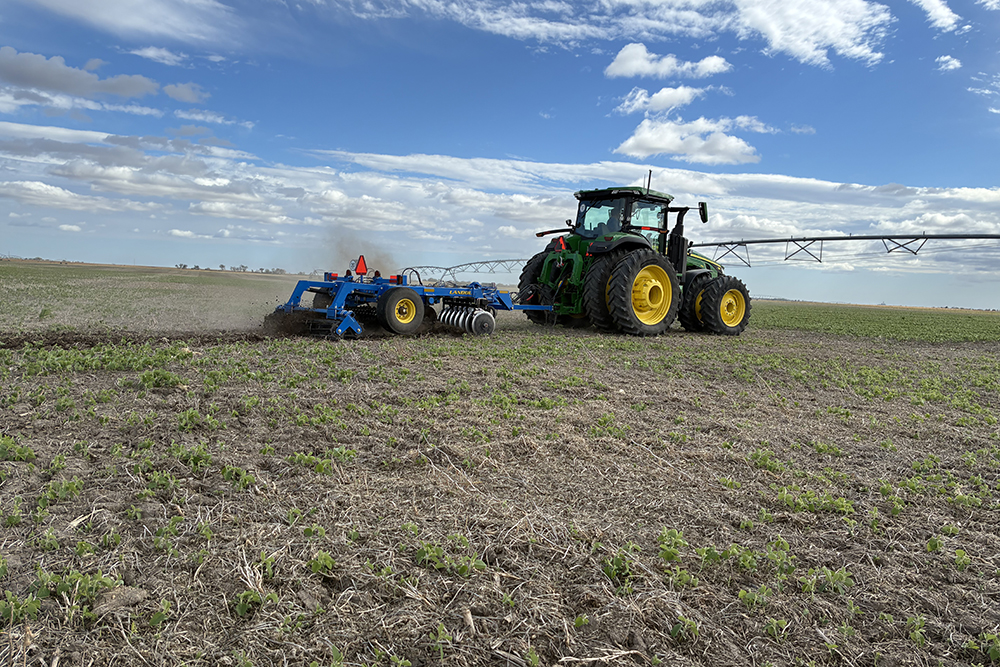

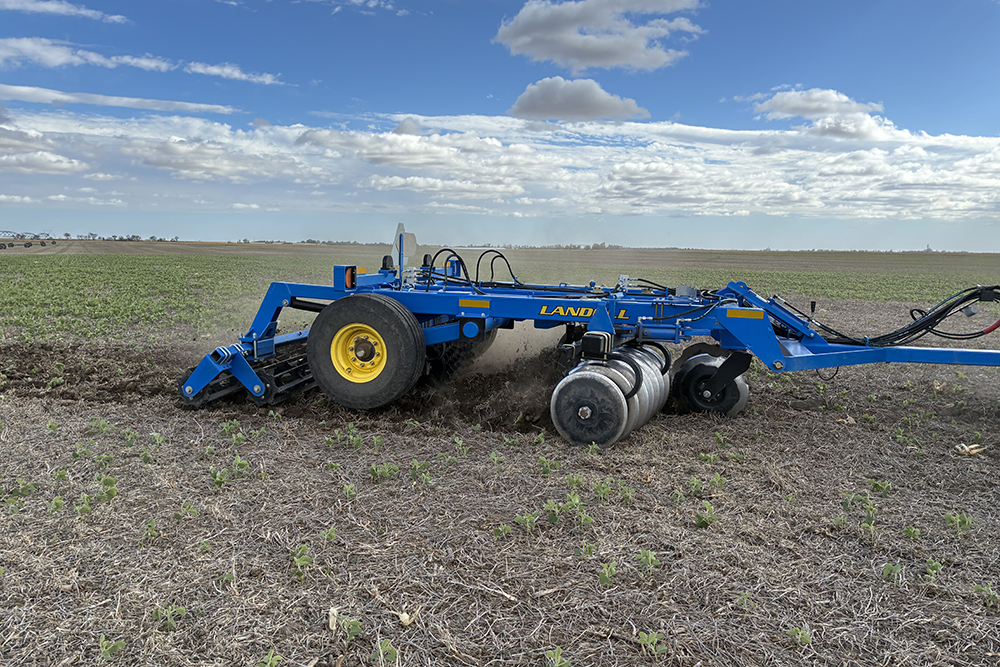

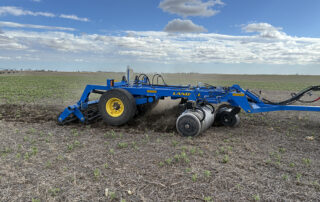

Landoll offers two model sizes of the 1900 Filloll, a 9’ model and a 11’ model. Both models are pull-type units, which follow the contour of the field better than competitive three-point mounted units. The design and heavy weight of the 1900 keep it in the ground and keep dirt moving towards the wheel track; this helps eliminate windrowing crop residue into the track like some lighter weight competitive units do.

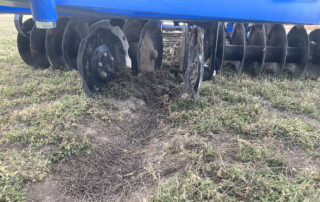

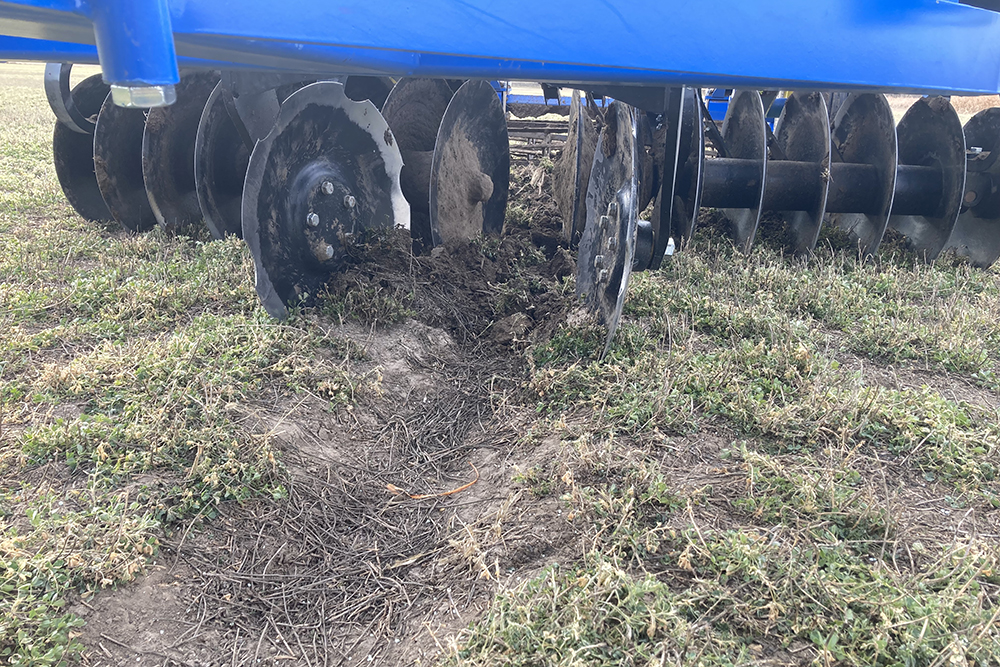

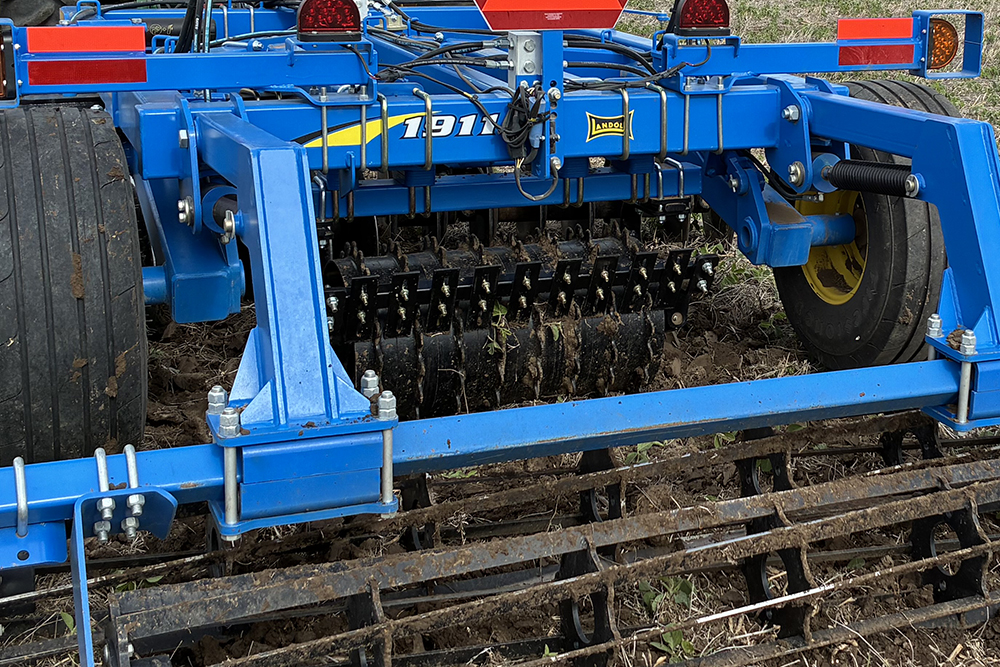

Individually mounted center cut out blades are positioned ahead of the disc gang to attack the pivot track head on. These notched center cut out blades help eliminate sidewall compaction, allowing the pivot track to be eliminated rather than just covered up.
Highly Customizable

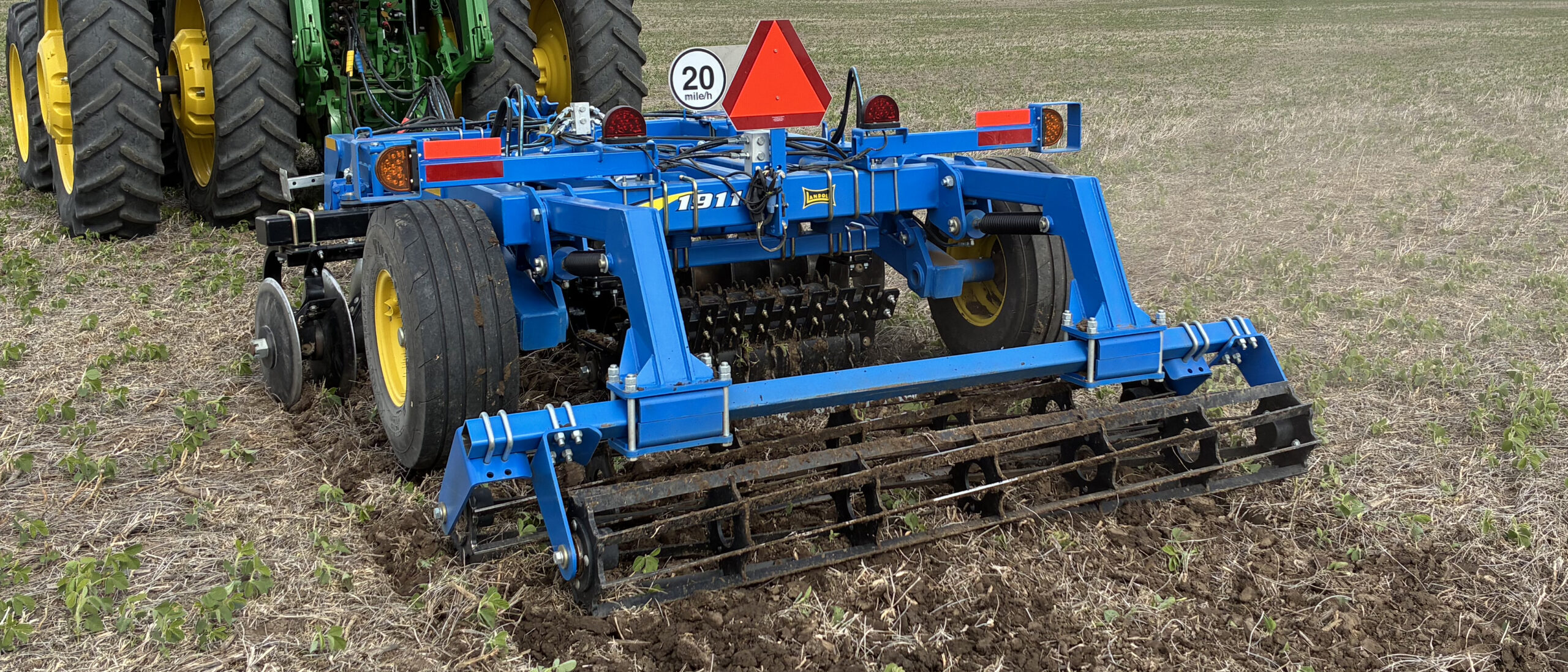

The 1900 Series Filloll – Pivot Track Closer comes standard with double 12” flat blade reels featuring hydraulic lift as a leveling attachment. A 14” diameter single chevron reel is available as optional equipment. Guide centering cones and center packer wheels are also offered as optional equipment.
Built to Last
As with all Landoll equipment, quality is built into the 1900 Filloll. Trunnion style bearings with triple lip seals mounted on c-cushion bearing standards are designed to last. 24” x ¼” smooth rollable disc blades with adjustable 5 ½” scrapers will provide durability for many seasons of use. The heavy-duty design and user friendly on the go adjustments make the 1900 Filloll the premier Pivot Track Closer on the market today. That’s the Landoll way!
Features
- Heavy-Duty 6” x 4” x ¼” Frame Tubes
- Hydraulic Front to Rear Leveling
- 320/70R x 15 Radial Tires with 8-Bolt Wheels and 2 ¼” Slip-In Spindles
- 4 ½” Lift Axle with Maintenance Free Lift System

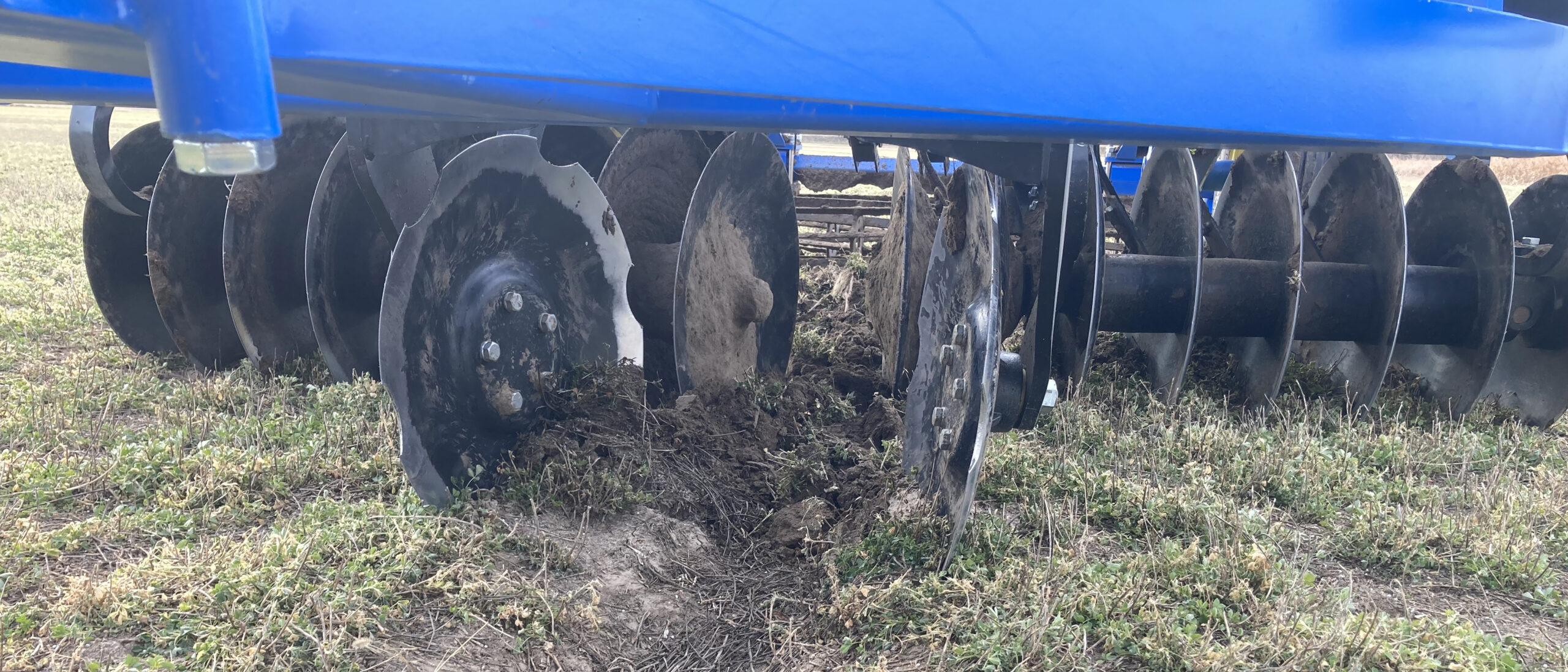

- Disc Gang with 24” x ¼” Smooth Rollable Blades
- 6” Cast Spools on Disc Gang
- Trunnion Bearings with Triple Lip Seals Mounted on C-Cushion Bearing Standards
- Adjustable 5 ½” Scrapers with Heavy-Duty ½” x 1 ¾” Spring Steel Arm
- Scraper Mounting Bracket Attached to the C-Cushion Bearing Standard
- Hydraulic Adjustable ‘On the Fly’ Gang Angle from 10 to 18 Degrees
- Center Cut Out Blades are Individually Mounted Blades to Attack the Pivot Track Before the Discs
- Hydraulic Double 12” Flat Blade Reel Leveling Attachment is Standard Equipment
- 14” Single Chevron Reel Available as an Option
- Cat. III Cast Single Lip Ball Hitch
- Safety Warning Lights
- Optional Guide Centering Cones

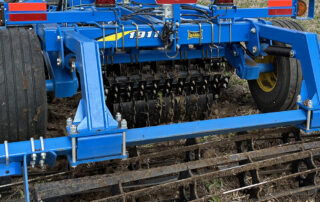

- Optional Packer Wheels
- Optional Spare Tire with Mount
Specifications
