The Complete Container Transporter
Landoll’s all-new 343B Traveling Axle Trailer brings together our decades of experience in the storage container industry. Today’s demands to move standard ISO 20′ and 40′ boxes are easy. However, add the ISO and domestic high-cube along with the never-ending customized lengths of boxes to an application, and you need a trailer that can move them all. The 343B will do just that.
Made for you
The 343B is available in 39′, 43′, 46′, and 50′ lengths. The 39′ model gives an operator the greatest maneuverability while handling a cube up to 40′ in length. The 43′ model can handle up to 45′ boxes and the 46′ model can handle up to 48′ boxes. If you have domestic 53′ high cube boxes in your fleet, then choose the 50′ model. Match the length with the containers you are moving.**
** A fifth wheel height of 45″ is required when hauling high-cube containers
Flexibility to Choose
The 343B includes the Chain Drive Load System standard. But if your drivers like a winch system, then choose from a 12,000 or 20,000 lbs. Warn winch. The standard Handling Package includes a chain loading bridle, chain binders, front double container stops, and push bar. Outside guide panels or toe boards can be added with the standard corner casting guide. They have an inside position for guiding 96″ wide boxes. With the optional bolt-on outside guide panels, you can guide 102″ high cube boxes.
Features
Frame & General
| Capacity* | 5 Ton (10,000 lbs.) |
|---|---|
| Deck Rating | 10,000 lbs. in 10′ |
| Estimated Base Weight | 14,000 lbs. (39′) +/-3% |
| Main Frame | Fabricated 80,000 PSI Yield Beams |
| Crossmembers | 12″ and 24″ Centers |
| Pin Setting | 43″ Set-Back, 75″ CA Tractor Minimum; 18″ Setting |
| Swing Clearance | 78″ Rear and Forward Swing Clearance |
| Deck Width | 102″ |
| Loaded Deck Height | 48″ at Rear Approach Plate |
| Decking | 1/8″ Steel Tread Plate, 11″ Recessed Trough – Full Length, Skid Plate 9.5″ Wide / Side Outer Frame 6-3/4″ Tall |
| Load Angle | 12° |
| Accessories | Traction Paint in Traffic Areas, Centralized Grease System, Two-Stage Powder Coat Paint, 29″ Flat Approach Plate with (2) Keyhole Tie Downs, and Wireless Remote Control |
| Tool Box | (1) Streetside 42″W x 28″D x 9″H with Lockable Door |
| Tie Downs | Double Keyhole Chain Slots 24″ Centers on Side of Outer Beam |
| Parking Stands | Jost Two Speed Landing Gear |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Suspension & Undercarriage
| Suspension | Neway Air Ride RLU228, 22,500 lbs. Capacity |
|---|---|
| Axles | (1) 25,000 lbs. Dual Tire, Oil Bath Bearings (RTAC Legal Width), Automatic Slack Adjusters Axles Prepped for Air Inflation |
| Brakes | 16.5 x 7 Full Air / Spring Brakes, ABS 2S1M |
| Tires | 255/70R 22.5 LRH Double Coin |
| Rims | 22.5 x 8.25 Tubeless |
| Wheels | Steel Hub Pilot |
| Oil Seal Hubs | Internal Mated Assembly |
Hydraulics
| Hydraulic Hook Up | 3/4″ Flat-Faced ISO Quick Coupler |
|---|---|
| Loading System | Hydraulic Gear Box, 12,000 lbs., with Continuous Power Chain Drive Load System 1/2″ Chain |
| Hydraulic Valve Body | Rexroth 2,500 PSI – 20 GPM at Controls, 50 GPM Max |
Electrical
| Electrical Hook Up | 7-Way Receptacle |
|---|---|
| Lights | Grote Clear Lens LED (10-year warranty) |
| Wiring Harness | Grote “Xtreme” Wiring Harness (7-year warranty) |
| Auxiliary Lighting | Rear Center Strobe Light |
Finish & Color
| Finish | Steel Grit Shot Blast to Bright Metal |
|---|---|
| Powder Coat Color | White, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Blue |
| Decals | Hi-Visibility Reflective Package |
Options
Parking Stands
| Manual Pin Drop |
|---|
Winch & Accessories
| Chain Drive Load System includes: | 12,000 lbs. Hydraulic Gear Box Chain Drive System Chain and Grab Hook Assembly 42″ x 1/2″ Pusher / Dozer Blade Chain Connector Container Load Bridle Double Container Stops (Hold down 2′ – 20′) Front Container Stop, Hold Down (Lock into Bridle) Load Binder 3/8″ Ratchet Style (1 pair) |
|---|---|
| Option in lieu of above Standard | 12,000 lb. Warn Planetary Winch, 2 Speed, with Air Release Container Load Bridle Front Container Stop, Hold Down (Lock into Bridle) Load Binder 3/8″ Ratchet Style (1 pair) |
| Option in lieu of above Standard | 20,000 Lb. Warn Planetary Winch, 2 Speed, with Air Release Container Load Bridle Front Container Stop, Hold Down (Lock into Bridle) Load Binder 3/8″ Ratchet Style (1 pair) |
Tie Downs
| Bolt-on Strap Ratchets with Hook Pockets | |
|---|---|
| Bolt-on Strap Ratchets with J-Hooks | |
| Rear Shoe Locks for Rear Corner Castings | |
| Pin Container Stop and Lock Blocks |
Deck & Accessories
| Side Guide Anchors (Bolt-on) | |
|---|---|
| Side Container Guide Panels | |
| Front Mounted Orange Aluminum Ladder | Street Side, Curb Side or Both |
| 3/8″ x 2-1/2″ Toe Board outside of Skid Plate | |
| Extra Toolbox 42″W x 28″D x 9″H | Street Side, Curb Side or Both |
| Single or Dual Extra Toolbox 42″W x 28″D x 17″H | Street Side, Curb Side or Both |
| Underdeck Work-Zone Lighting | |
| LED Work Lights | |
Suspension & Undercarriage
| Galvanized Bumper | |
|---|---|
| Galvanized Undercarriage |
Hydraulic Power Source
| Wet Kit for Tractor (Includes 30 Gallon Steel Tank) | Shipped loose with trailer or factory installed |
|---|---|
| Additional OEM Hydraulic Quick Couplers | |
| Hydraulic Engine Package 25HP Gas | Front Mounted over Gear Box or Winch |
Tires & Rims
| 255/70R 22.5 Michelin Tires | |
|---|---|
| 235/75R 17.5 Double Coin Tires In lieu of Standard 22.5 | |
| Spare Tire and Rim | (235/75R 17.5) or (255/70R 22.5) |
| Hubodometer | |
| Automatic Tire Inflation | |
Paint & Special
| Hot Dip Galvanizing | Trailer frame is totally submerged |
|---|---|
| Paint Over Galvanizing | Contact factory |
| Special Paint | Contact factory |
Specifications
| Model | Capacity* | Base Weight | Length | Axles | Tires & Ply Rating |
|---|---|---|---|---|---|
| 343B-39 | 5 Ton | 14,000 lbs. (+/- 3%) | 102″ x 39′ | 1 | (4) 255/70R 22.5 LRH |
| 343B-43 | 5 Ton | 14,900 lbs. (+/- 3%) | 102″ x 43′ | 1 | (4) 255/70R 22.5 LRH |
| 343B-46 | 5 Ton | 15,350 lbs. (+/- 3%) | 102″ x 46′ | 1 | (4) 255/70R 22.5 LRH |
| 343B-50 | 5 Ton | 16,100 lbs. (+/- 3%) | 102″ x 50′ | 1 | (4) 255/70R 22.5 LRH |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Specifications subject to change without notice.
Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment.

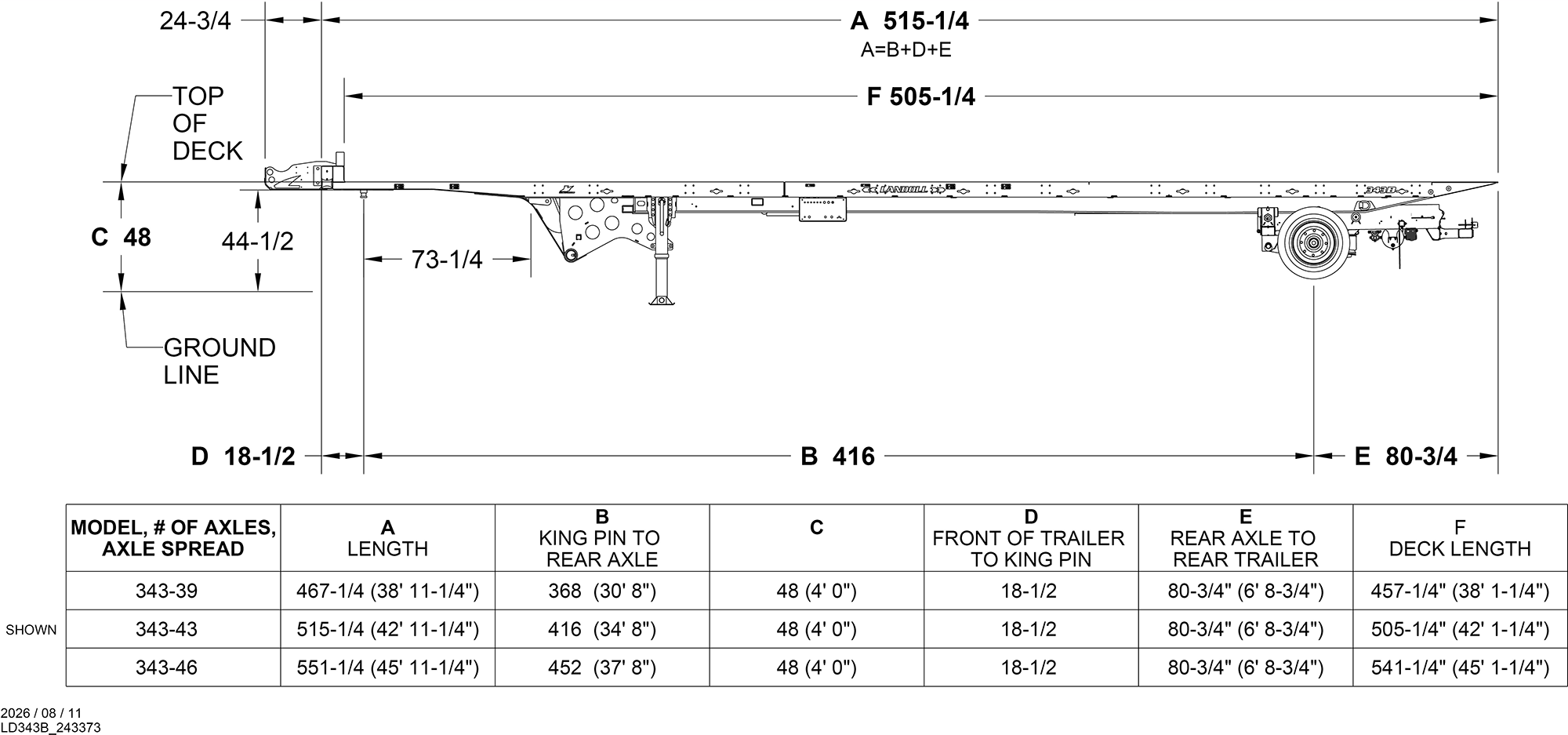

The information on any form of this website is intended only for the sole use of Landoll. We do not share or sell any of this information to third parties. This drawing and all information therein is property of Landoll and is confidential. It must not be made public or copied. This drawing is loaned subject to return upon demand and shall not be used directly or indirectly in anyway detrimental to our interest. Drawing illustrates standard equipment; optional equipment may change standard measurements.
