THE COMPLETE CONTAINER TRANSPORTER
Landoll’s all-new 344 Traveling Axle Trailer builds on our experience in the storage container industry. With an increased capacity, this trailer can do more than just empty containers.
DESIGNED WITH INTENT
The 344 is available in 43′, 46′, and 50′ lengths. The 43′ model can handle up to 45′ boxes and the 46′ model can handle up to 48′ boxes. If you have domestic 53′ high cube boxes in your fleet, then choose the 50′ model. Customize the trailer around your needs.
A fifth wheel height of 45″ is required when hauling high-cube containers.
PULL BY CHOICE
The 344 includes a Chain Drive Load System, or a Winch System is available. Toe boards can be added with an inside position for guiding 96″ wide boxes or bolt-on outside guides can be optioned for 102″ high cube boxes. Each trailer comes with the Landoll Handling Package standard.
Photos may show optional features.
Features
Frame & General
| Capacity* | 15,000 lbs. |
|---|---|
| Deck Rating | 15,000 lbs. in 20′ |
| Estimated Base Weight | 17,000 lbs. +/- 3% (43′) |
| Lengths | 43′, 46′, 50′ |
| Main Frame | Fabricated 80,000 PSI Yield Beams |
| Deck Width | 102″ |
| Deck Height (At Axle Location) | 48″ (45″ Fifth Wheel) |
| Decking | 1/8″ Steel Tread Plate, 11″ Recessed Trough – Full Length, Skid Plate 9.5″ Wide / Side Outer Frame 6-3/4″ Tall |
| Crossmembers | 12″ and 24″ Centers |
| Pin Setting | 18″ |
| Swing Clearance | 78″ |
| Load Angle | 12° |
| Accessories | Traction Paint in Traffic Areas, Two-Stage Powder Coat Paint, 29″ Flat Approach Plate with (2) Keyhole Tie Downs, and Wireless Remote Control |
| Tie Downs | Tie Down Package in Skid Plate |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Suspension & Undercarriage
| Suspension | Air Ride 22,500 lbs. Capacity |
|---|---|
| Grease | Centralized Grease System |
| Axles | 25,000 lbs. Axles, Dual Tire, Oil Bath Bearings |
| Brakes | 16.5 x 7 Full Air / Spring Brakes, ABS 4S2M |
| Tires | 255/70R 22.5 LRH Double Coin |
| Wheels | Hub Pilot 22.5 x 8.25 |
Equipment
| Lockable Storage Box | (1) 42″ W x 28″ D x 9″ T, Under Deck Mounted |
|---|---|
| Gear Box Chain Drive Load System | Chain Drive Line Pull 12,000 lbs. |
| Chain Handling Package | Front Chain Bridle |
| Wireless Remote-Control | Standard |
| Centering Guides | Standard |
| Parking Stands | Jost Two Speed |
| Centralized Grease System | |
Hydraulics
| Hydraulic Hook Up | 3/4″ Flat-Faced ISO Quick Coupler |
|---|---|
| Loading System | Hydraulic Gear Box, 12,000 lbs., with Continuous Power Chain Drive Load System 1/2″ Chain |
| Hydraulic Valve Body | Rexroth 2,500 PSI – 20 GPM at Controls, 50 GPM Max |
Electrical
| Air / Electrical | 7-Way Receptacle |
|---|---|
| Lights | Grote Rubber Grommet Mounted LED Lighting |
| Wiring Harness | Grote “Xtreme” Wiring Harness (7-year warranty) |
Finish & Color
| Finish | TGIC Polyester Powder Coat |
|---|---|
| Powder Coat Color | White, Black, Yellow, Blue, Red, Green, Sapphire Blue, Dark Gray |
Options
Gooseneck
| Planetary Winch | 20,000 lbs. |
|---|
Deck & Accessories
| Front Ladder LH / RH / Both | |
|---|---|
| Work Zone Lighting | |
| Toe Boards |
Tires & Rims
| 235/75R 17.5 Double Coin LRJ |
|---|
Tie Downs
| Bolt-On Strap Ratchets | |
|---|---|
| Stop / Lock Blocks |
Suspension & Undercarriage
| PSI Tire Inflation System | |
|---|---|
| Pin Drop Parking Stands |
Hydraulic Power Source
| Hydraulic Engine Package – 25HP Kohler |
|---|
Paint & Special
| Hot Dip Galvanizing | |
|---|---|
| Paint Over Galvanizing | |
| Special Paint | As Requested |

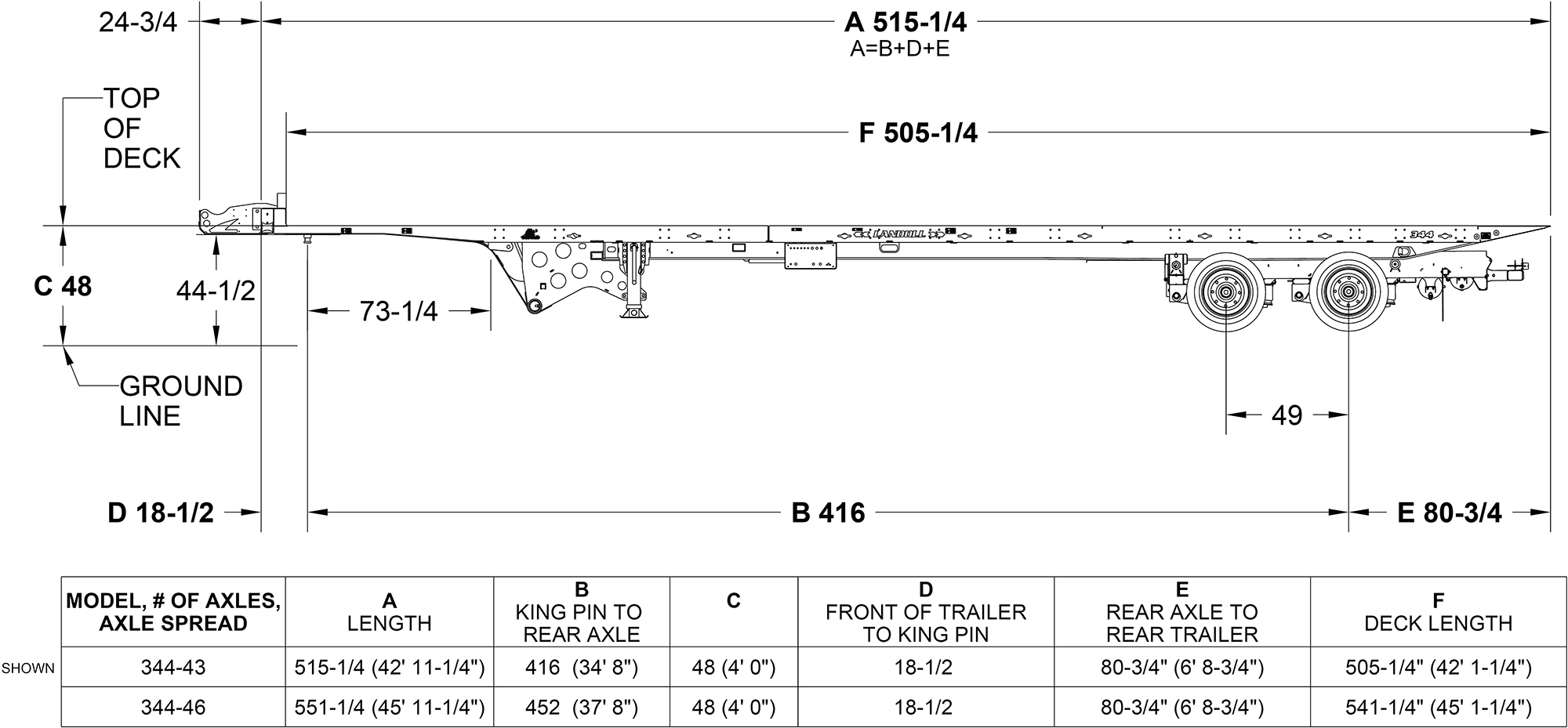

Specifications
| Model | Capacity* | Base Weight | Deck | Axles | Tires & Ply Rating |
|---|---|---|---|---|---|
| 344-43 | 15,000 lbs. | 17,000 lbs. +/- 3% (43′) | 102″ x 43′ | 2 | 255/70R 22.5 LRH Double Coin |
| 344-46 | 15,000 lbs. | 17,450 lbs. +/- 3% (46′) | 102″ x 46′ | 2 | 255/70R 22.5 LRH Double Coin |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Specifications subject to change without notice.
