The Next Generation Landoll Has Arrived!

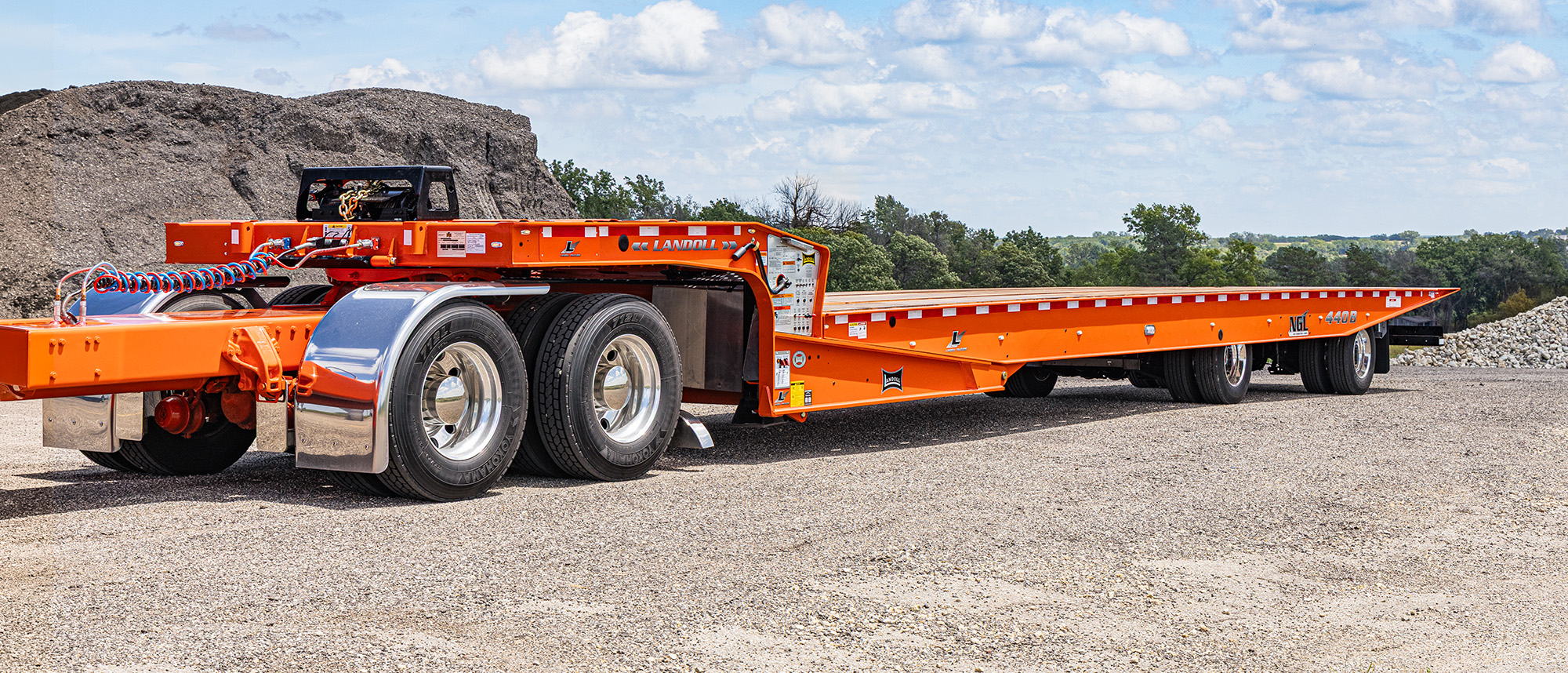

The 440B Traveling Axle Trailer, with a 40-ton capacity, is available in lengths of 41′, 48′, 53′, and California legal 50′. Handle tough equipment including super low clearance pavers with easy one-man operation.

HOSS

The Landoll trailer line is taking a huge leap forward with the introduction of the all-new Hydraulic Operating Systems (HOSS) and High-Visibility Lighting package. The 440 and 455 B-Series Traveling Axle Trailers are the first models with these newly added standard features.

HOSS cuts the overall operational time in half. The axle forward travel is 36% faster, and 58% faster moving back. Tilt-deck positioning is nearly 63% faster, and winch in/out speeds have increased 66%.

Low Clearance Upper Deck Transition

All 400 series trailers feature the super low clearance slope transition allowing man lifts, forklifts, and other difficult low clearance equipment to easily load the upper deck.

Ultimate Stability

The four beam frame design is the backbone of a super versatile, solid piece of equipment. Wider main beams with a wider undercarriage, outboard tilt cylinder mounts, and outer beam pivot points add superior stability while loading heavy loads.

Powder Coat Paint

Landoll is the only trailer manufacturer to offer powder coat paint on an entire trailer frame. The very durable finish provides excellent chemical and salt resistance while giving Landoll trailers a high quality, attractive appearance. A zinc-rich powder primer is applied prior to painting the entire frame with one of eight standard powder coat colors.

Railroad Track Option

The railroad track option is ideal for safely loading and transporting today’s rail maintenance equipment. The Landoll approach plate sits down onto the rail to create a solid base and smooth transition from rail to trailer without ramps or heavy drop-in-rails, allowing operators to load these machines within minutes.

Features

Frame & General

Capacity* 40 Ton (80,000 lbs.)
Deck Rating 50,000 lbs. in 10′
Estimated Base Weight To be updated
Main Frame Fabricated 80,000 and 100,000 PSI Yield, 40″ Center, Four-Beam Design
Crossmembers Alternating 4″ and 3″ Junior I-Beam on 8″ Centers
Pin Setting 21″
Swing Clearance 83.5″
Hitch 5th-Wheel 2″ Kingpin
Deck Width 102″
Slope Drop 90°
Loaded Deck Height 37″
Loaded Ground Clearance 14″ at Bottom of Gooseneck
Decking 1-3/8″ Apitong Hardwood
Load Angle 6.5°
Accessories Flat Approach Plate with 6 Keyhole Tie Downs, Main Deck Center Slope Roller, Very Soft Transition from Lower to Upper Deck
Tie Downs Double Key Hole Chain Slots with Square Stake Pockets on 16″ Centers
Tool Box Twin Upper Deck Mounted Top-Opening with Non-Weight Bearing Lid Illuminated
Parking Stands Jost Two Speed Landing Gear

* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Suspension & Undercarriage

Suspension Neway Air Ride RLU228, 22,500 lbs. Capacity
Undercarriage (2) 4″ x 126″ – 48′; 4″ x 126″ and 4″ x 138″ – 50′; 4″ x 138″ – 53′; Accepts After-Market Dock Level Hydraulics System; Powder Coated Black
Grease Centralized Grease System
Axles (2) 25,000 lbs. Axles, Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters. Prepped for Air Inflation
Brakes 12.25 x 7.5 Full Air / Spring Brakes ABS, 4S2M
Tires 235/75R 17.5 LRJ Double Coin Tires
Rims 17.5 x 6.75 Tubeless Rims
Wheels Steel Hub Pilot
Oil Seal Hubs Internal Mated Assembly

Hydraulics

Hydraulic Hook Up Quick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max
Tilt Cylinders (2) 6″ x 30″
Hydraulic Winch 12,000 lbs. Worm Gear with Spring Tension and 85′ of 1/2″ Cable
Hydraulic Valve Body Rexroth

Electrical

Air / Electrical 7-Way Receptacle
Lights Grote MicroNova® LED Clear Lens-Enhanced Stop, Tail & Turn; Rear Amber Strobe (10-year warranty)
Wiring Harness Grote “Xtreme” Wiring Harness (7-year warranty)
Turn Signal Center Mounted Turn Signal

Finish & Color

Finish Steel Grit Shot Blast to Bright Metal, Zinc Rich Primer
Powder Coat Color White, Black, Yellow, Blue, Red, Green, Metallic Gray, Sapphire Blue
Decals Hi-Visibility Reflective Package

Options

Base

Deck Width 8′ 6″ Wide Deck (Standard)

9′ Wide Deck (Canadian RTAC compliant)

10′ Wide Deck (Canadian RTAC compliant)

Deck Extensions 27″ Aluminum Pull-Outs (Capacity not to exceed 50% of trailer capacity)

Swing-Out Outrigger (Capacity not to exceed 50% of trailer capacity)

Hydraulic Kicker Rollers (8 Rollers)
Arctic Hose Package (Upgrades Air and Hydraulic Lines)
Heavy Duty Gooseneck (Adds 2′ to trailer length and 23.5″ to swing clearance)
Railroad Track for Upper and Lower Deck
Railroad Track Guide on Approach

Bulkhead

Bulkhead 16″/24″ x 102″ 2 Position Bulkhead/Front Extension (Solid, 3,000 lbs. distributed capacity) (Powder Coat Black)

48″ x 102″ Mesh Steel Bulkhead (Powder Coat Black)

Note: All Bulkhead options require the 48″ X 102″ Bulkhead
Bulkhead Wings Steel Wings (Powder Coat Black)

Aluminum Wings

Aluminum LED Light Bar (Stop, Turn, and Tail Lights) with Chain Binder Rack
Dual LED Work Lights mounted on Light Bar
Dual Class II Strobe Beacons mounted on Light Bar
Bolt-On Chain-Binder Rack
Dual LED Work Lights mounted on Bulkhead
Dual Class II Strobe Beacons mounted on Bulkhead
Spare Tire Carrier Rear Mounted

Front Mounted

Dual Front Mounted

Propane Carrier mounted on Bulkhead Rear Street Side Mounted

Rear Curb Side Mounted

Both Rear Street and Curb Side Mounted

Front Street Side Mounted

Front Curb Side Mounted

Both Front Street and Curb Side Mounted

Parking Stands

Parking Stands Pin Drop

Jost 2 Speed (Standard)

Hydraulic

Winch & Accessories

Winch Delete Standard 12K Braden, Worm Gear

20K Braden, Worm Gear

20K Braden, Worm Gear with Pivoting Cable Roller Guide and Air Release/Air Tension

20K Warn, Planetary, 2 Speed with Air Release/Spring Tension

30K Warn, Planetary, 2 Speed with Air Release/Spring Tension

Winch Guard
Dual Led Worklights mounted on the Winch Guard
Cable Roller Guide (4-Way Rollers)
Bolt-On D-Rings at Rear of Winch Street Side

Curb Side

Both Street and Curb Side

Upper Deck Slope Wear Protection Slope Roller
Wireless Remote Control (6 function: tilt, travel, and winch)

Tie Downs

Flush Mounted Straight D-Ring (Not available for web mount)
Angled D-Rings (Mounted under Top Flange Outer Beam)
Low Profile Strap Ratchet
3-Bar Strap Ratchet
J-Hook (Opposite side of Ratchet)
Stake Pocket (Opposite side of Ratchet)
Chain Rub Rail (Per foot) (Setting price based on 440-53 length)

Upper Deck & Accessories

Toolboxes Non-Load Bearing Top Opening Toolboxes (Standard)

Load Bearing, Self-Supporting, Top Opening Toolboxes

Side Opening Toolboxes

Side Opening Toolboxes (Remove)

Load Bearing, Self-Supporting, Top Opening Toolboxes

Toolboxes Street Side

Curb Side

Both Street and Curb Side

Front Flip Extension Ramps (In track area)
Slope Filler (Bolt-on, makes Upper Deck level)
Slope Mounted Dual Led Work Lights

Lower Deck & Accessories

Folding Step(s) Street Side (Painted Safety Yellow)

Curb Side (Painted Safety Yellow)

Both Street and Curb Side (Painted Safety Yellow)

Toe Boards (3/8″ x 2-1/2″)
Skid Plates Container Skid Plates Flush with Outer Flange (3/8″ x 6″ for 8′ 6″ wide trailer)

Container Skid Plates Flush with Outer Flange (3/8″ x 10-1/2″ for 9′ wide trailer)

Container Skid Plates Flush with Outer Flange (3/8″ x 14-3/4″ for 10′ wide trailer)

Container Skid Plates Flush with Wood Deck (3/8″ x 6″ for 8′ 6″ wide trailer)

Container Skid Plates Flush with Wood Deck (3/8″ x 10-1/2″ for 9′ wide trailer)

Container Skid Plates Flush with Wood Deck (3/8″ x 14-3/4″ for 10′ wide trailer)

Deck Straps Deck Straps beside Outer Beam (1-1/4″ x 9″)

Deck Straps beside Inner Beam (1-1/4″ x 9″)

Landoll Traction Plate Over Wood 10′ Forward of Approach Plate
Landoll Traction Plate on Approach (Bolt-on)

Deck – Additional

Deck Type 1/8″ Steel Tread Plate Decking
Flag Holders 2 Front Lower Deck and 2 Rear Lower Deck

2 Upper Deck, 2 Front Lower Deck, and 2 Rear Lower Deckeck and 2 Rear Lower Deck

Flag and Oversized/Wide-Load Banner Kit (Includes 6 Flags and 2 Banners)
Swing-Out Lights Upper Deck Turn/Flashing Lights (NA w/Chain/Rub Rail)

Upper Deck Marker Lights, Amber Front, Red Rear (NA w/Chain/Rub Rail)

Lower Deck Marker Lights, Amber Front, Red Rear

Magnetic Led Amber Warning Lights (360°, battery powered)

Suspension & Undercarriage

Hydraulic Dock Leveler, 2 Legs (62K capacity)
Air Dump Valve
Scale System Liquid Filled Air Pressure Gauge

Air-Weigh Loadmaxx Digital Scale (Trailer only)

Loadmaxx Comlink Cable Kit (Cable connects trailer unit to tractor scale) (Requires Loadmaxx Digital Scale)
Shock Straps, Wire Rope
Hardened Undercarriage Cylinders (Recommended with the Arctic Package)
Powder Coat Bumper (Standard)
Hot Dip Galvanized Bumper (In lieu of Standard) (Included with Galvanized Frame)

Hydraulic Power Source

Hydraulic Quick Coupler Kit (1 male, 1 female)
Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover Upper Deck Mounted
Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover Front Extension Mounted

Tires & Rims

17.5 Machined Aluminum Wheel (Priced per tire)
17.5 Polished Aluminum Wheel (Priced per tire)
17.5 Machined Aluminum Wheel (Priced per tire)
17.5 Polished Aluminum Wheel (Priced per tire)
Tires 235/75R 17.5 Continental

245/70R 17.5 Michelin

255/70R 22.5 Double Coin

255/70R 22.5 Continental

255/70R 22.5 Michelin For 17.5 Tires

Wheels – 17.5 Tires 5 Steel Hub Wheel (8 bolt) (Standard)

5 Machined Aluminum Wheel (8 bolt) (Price for 2 axles outside only)

5 Polished Aluminum Wheel (8 bolt) (Price for 2 axles outside only)

Wheels – 22.5 Tires 5 Steel Hub Wheel (10 bolt) (Standard)

5 Machined Aluminum Wheel (10 bolt) (Price for 2 axles outside only)

5 Polished Aluminum Wheel (10 bolt) (Price for 2 axles outside only)

Spare 235/75R 17.5 Double Coin Tires 1 or 2
Spare 235/75R 17.5 Continental Tires 1 or 2
Spare 245/70R 17.5 Michelin Tires 1 or 2
Spare 255/70R 22.5 Double Coin Tires 1 or 2
Spare 255/70R 22.5 Continental Tires 1 or 2
Spare 255/70R 22.5 Michelin Tires 1 or 2
Spare Wheel Type 17.5 Machined Aluminum Wheel (8 bolt) (1 or 2)

17.5 Polished Aluminum Wheel (8 bolt) (1 or 2)

22.5 Machined Aluminum Wheel (10 bolt) (1 or 2)

22.5 Polished Aluminum Wheel (10 bolt) (1 or 2)

Tire Air System Crossfire Air Equalizers
PSI Tire Inflation System
Hubometer
Dust Shields (For 22.5 Tires only)

Paint & Special

Standard Landoll Branded Decals (Affects Lower Deck only)
Undercoating (Petroleum based)
Anti-Slip Paint on Inner and Outer Flanges Black
Anti-Slip Paint on Inner and Outer Flanges Yellow
Hot Dip Galvanizing (Includes Bumper)
Powder Coat Paint only available with Non-Galvanized Trailers
Powder Coat Paint Colors Black (Standard), Anniversary Gray, White, Red, Viper Red, Green, Blue, Sapphire Blue, Yellow
Paint over Galvanizing (Side Frame web only)
Paint over Galvanizing (Top surfaces)
Wet Paint Color choice for Galvanized Trailer
Wet Paint Colors Black (Standard), Anniversary Gray, White, Red, Viper Red, Green, Blue, Sapphire Blue, Yellow

Specifications

Model Capacity* Base Weight Length Deck Axles Tires & Ply Rating
440B-41 40 Ton 16,820 lbs. (+/- 3%) 40′-10″ 102″ 2 (8) 235/75R 17.5 LRJ Double Coin
440B-45 40 Ton Constult Factory 44′-10″ 102″ 2 (8) 235/75R 17.5 LRJ Double Coin
440B-48 40 Ton 18,575 lbs. (+/- 3%) 47′-10″ 102″ 2 (8) 235/75R 17.5 LRJ Double Coin
440A-50CA 40 Ton 19,355 lbs. (+/- 3%) 49′-10″ 102″ 2 (8) 235/75R 17.5 LRJ Double Coin
440A-53 40 Ton 19,610 lbs. (+/- 3%) 52′-10″ 102″ 2 (8) 235/75R 17.5 LRJ Double Coin

* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.

Disclaimer: Landoll has a corporate policy of continuous product improvement and development, therefore, specifications are subject to change without any advance notice. Landoll is not responsible for differences between the specifications or illustrations contained on literature, data sheets, website and actual equipment.
