The Latest Landoll Addition
Staying true to what Landoll does, bringing maximum flexibility to our low deck height detachable series. The engineered extension beams create 4 different positions.
Model Options | Standard Length | Extended Length 1 | Extended Length 2 | Extended Length 3 |
---|---|---|---|---|
48′ | 48′ | 50-1/2′ | 53′ | 56′ |
53′ | 53′ | 55-1/2′ | 58′ | 61′ |
Low ride with 6″ Ground clearance
The 850XT shares features from the current Landoll 800 series and provides loadable low deck height all the way to the rear bumper. Having ride height adjustments in the gooseneck and rear trunnion, provides much needed compliance on the job site. Staying with the industry’s easiest gooseneck attachment, getting those challenging loads doesn’t seem challenging anymore.
Quick Load & Unload of large equipment
Featuring the industry’s best load angles and frame clearances, the 850XT is up for the challenge. Engineered meticulously for low ground clearance loads, like buses, RV coaches, firetrucks, and more. Landoll is here to help you get the job done while others simply do not have the right tool for the job.

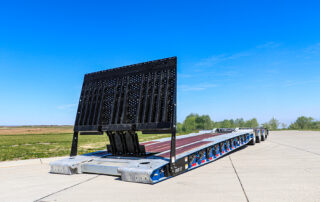

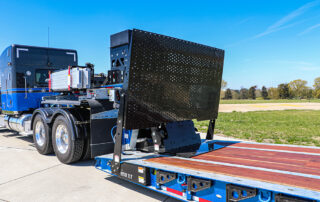

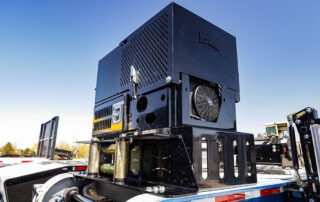

Photos may show optional features.
Features
Frame & General
Capacity* | 50 Ton (100,000 lbs.) (Capacity Reduces During Extending) |
---|---|
Deck Rating | 100,000 lbs. in 16′ |
Estimated Base Weight | 53′ – 24,000 lbs.(+/-3%) |
Main Frame | Fabricated Box Beam, 100,000 Yield PSI Flange |
Crossmembers | 6″ High Tensile I-Beams on 21″ Centers |
Gooseneck | 12″ Outriggers for 24′ Main Deck |
Pin Setting | 15″ Pin Setting |
Swing Clearance | 84″ Swing Clearance |
Hitch | 2″ Hitch Receiver with Electrical Outlet for Accessory Lights |
Deck Width | 102″ |
Loaded Deck Height | 22″ |
Loaded Ground Clearance | 6″ |
Decking | 42″ Deck Behind Rear Axle With Loading Angle and Boom Through |
Accessories | Arctic Components |
Storage Area | 1 – Located Rear of Lower Deck; 1 – Located Behind Rear Axle; Easy Access Side Door Storage in Bolsters; Chain and Block Box at Rear of Main Deck Between Main Beams |
Tie Downs | Perimeter Outer Flange Keyhole Gotchas; Center Main Deck Keyhole Tiedowns – 21″ Centers; (33) Total – Angled and Flush Mounted D-Rings; Neck: D-Rings 2 Each on Main Frame Rear Flush Mounted; Trunnion: D-Rings 2 Each Flush Mounted Front and Rear on Top of Inner Beams, 1 Each Angled on Bolsters Between Axles; Lower Deck: Web Mounted on 42″ Centers |
Bolsters | Quarter Front Bolster with Quick-Lift Drive Over Ramp; Weight Bearing Bolsters Between Axles with Storage |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Suspension & Undercarriage
Suspension | DEXTER Air Ride Suspension with 25,000 lbs Capacity Axles |
---|---|
Grease | Centralized Grease System |
Axles | 3 – 25,000 lbs. Dual Tire, Oil Bath Bearings; 60″ Axle Spacing, Automatic Slack Adjusters – All Axles, Drum Brakes |
Brakes | 12.25 x 7.5 Full Air with Spring Brakes ABS, 4S2M |
Height Adjustment | Air Raise and Lowering Valve with Quick Dump |
Tires | 235/75R17.5 Continental |
Rims | 17.5 x 6.75 Tubeless |
Hydraulics
Hydraulic Hook Up | Quick Couplers 2500 PSI/20 GPM @ Controls; 50 GPM Max |
---|
Electrical
Lights | Grote Clear Lens LED With Shock Absorbing Surround (10-year warranty) |
---|---|
Wiring Harness | Grote “Xtreme” Wiring Harness (7-year warranty) |
Outlet | 7 Prong Blade Electric Outlet at Rear for Accessory Lighting |
Strobing Light Package in Bumper |
Finish & Color
Finish | 400 Degree Bake/Steel Grit Shot Blast to Bright Metal |
---|---|
Primer | Zinc Rich Powder Primer |
Powder Coat | TGIC Polyester Powder Coat White, Black, Yellow, Blue, Red, Green, Sapphire Blue, Dark Gray |
Options
Gooseneck
Gooseneck Bed Assembly, Aluminum or Steel | |
---|---|
Gooseneck Aluminum Cover Plate | |
Battery Back-Up for Detached Lighting | |
Bolt-On Chain and Binder Rack Between Lock Arms | |
Gooseneck Mud Flaps | |
Gooseneck Taillight and Work Lights | |
Fenders for Gooseneck | |
20,000 / 30,000 lb Winch In-Deck Mount (Mid and / or Rear), Gooseneck Mounted | |
Bus Ramps – Front and Rear Combination (4 Pieces) | |
Shock Straps | |
Air Lift on 2nd or 3rd Axle | |
Air Outlets |
Crossmembers
Extra Crossmembers |
---|
Deck And Features
Center Filled Wood Deck – Apitong |
---|
Storage Area
Single or Dual Load Bearing Toolboxes Located at Front of Lower Deck |
---|
Suspension / Axles
Air-Weigh Scale Options | |
---|---|
Right Weigh Scale |
Brakes
Air Disc Brakes |
---|
Tires
235/75R 17.5 Double Coin on 17.5 x 6.75 Tubeless Rims | |
---|---|
Meritor / PSI Tire Inflation |
Lights
Gooseneck Mounted Work Lights | |
---|---|
Trunnion Lighting |
Finish / Color
Galvanizing |
---|
Specifications
Model | Capacity* | Base Weight | Deck | Axles | Tires & Ply Rating |
---|---|---|---|---|---|
850XT-48′ | 50 Ton | TDB | 102″ x 48′ | 3 | (12) Continental HTR2 235/75R17.5 |
850XT-53′ | 50 Ton | 24,000 lbs (+/- 3%) | 102″ x 53′ | 3 | (12) Continental HTR2 235/75R17.5 |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Specifications subject to change without notice.
