The 317 Workhorse

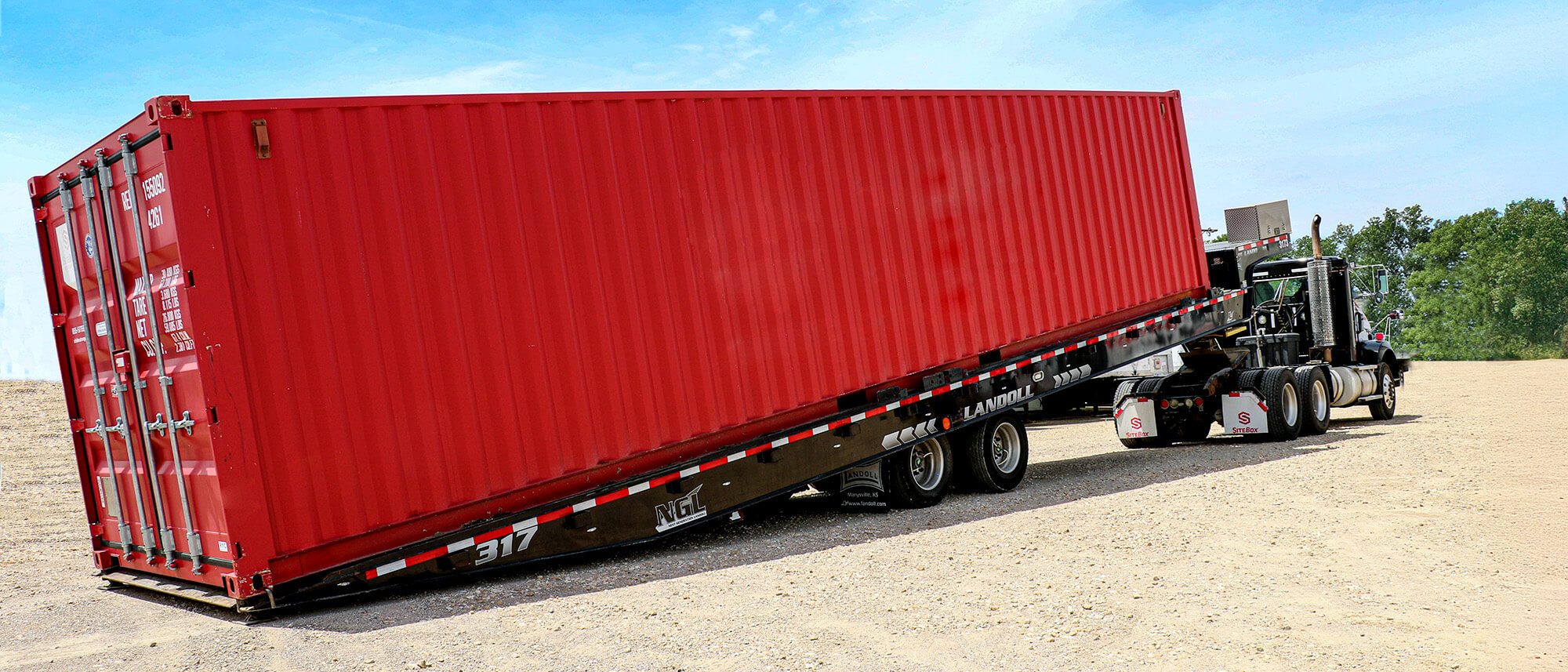

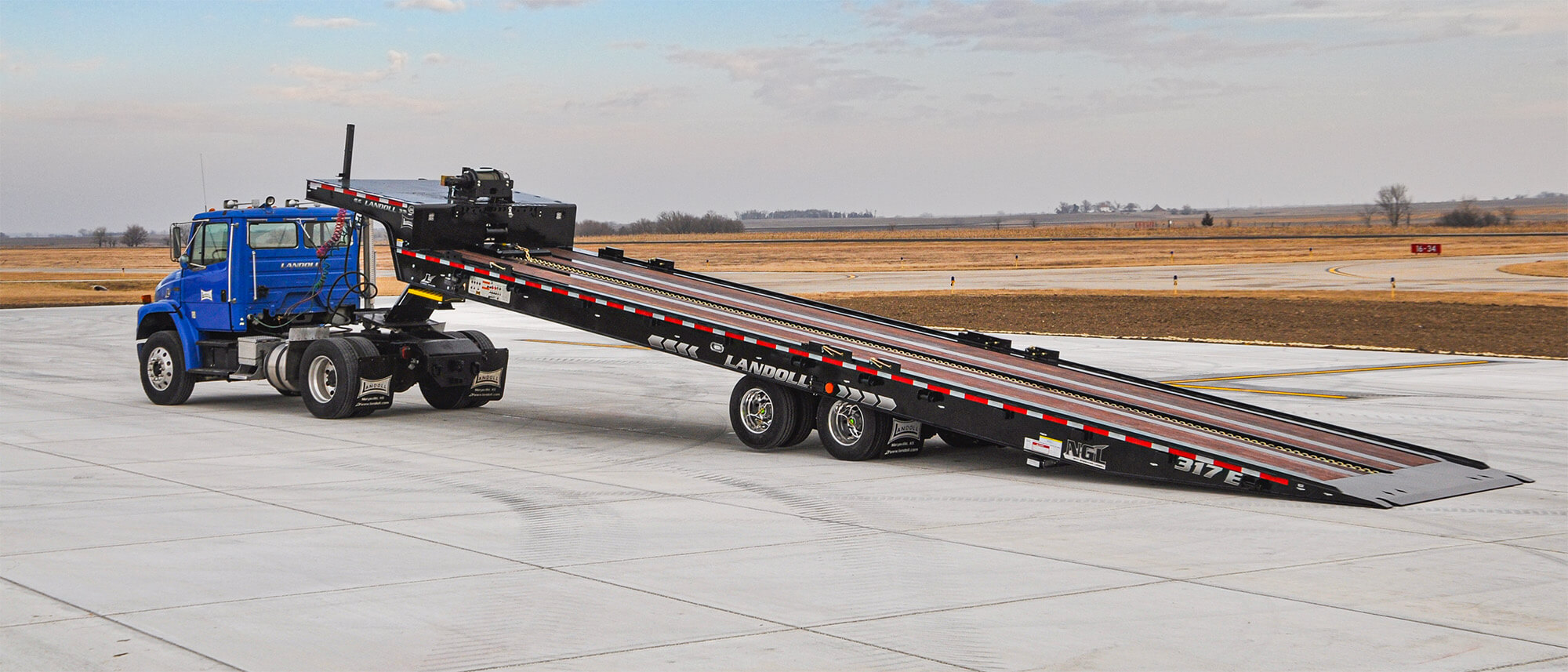

The 317 35-ton capacity trailer features a one-piece, 4-beam frame designed with a low-load angle and a 29” full width, rigid flat approach plate. Landoll’s full-tilt trailer gives the operator full control of the trailer and heavy loads. The 317 features a rigid frame that lifts up from the fifth wheel. The 317 is nicknamed the OLD WORKHORSE because of its decades of dependable performance and durability.
Superior Quality and Durability

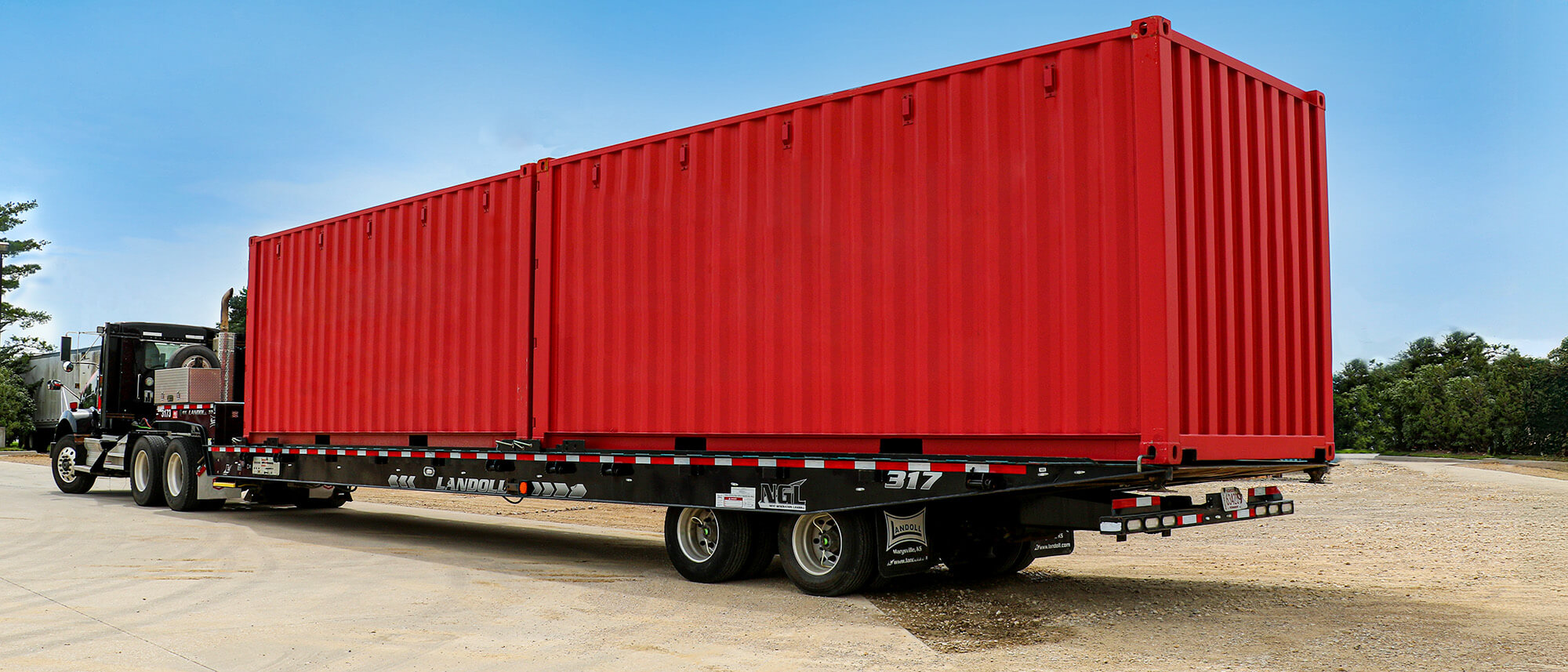

In-house designed and fabricated steel beams, incorporated with high tensile strength Jr. I-Beam cross members provide unsurpassed strength while offering substantial weight savings. The undercarriage roller bearings lower the deck into patented reinforced pockets, lowering the deck height and preventing frame twist. Whether the load is a heavy fork lift or a loaded container, the 317 can do it all.
More Features

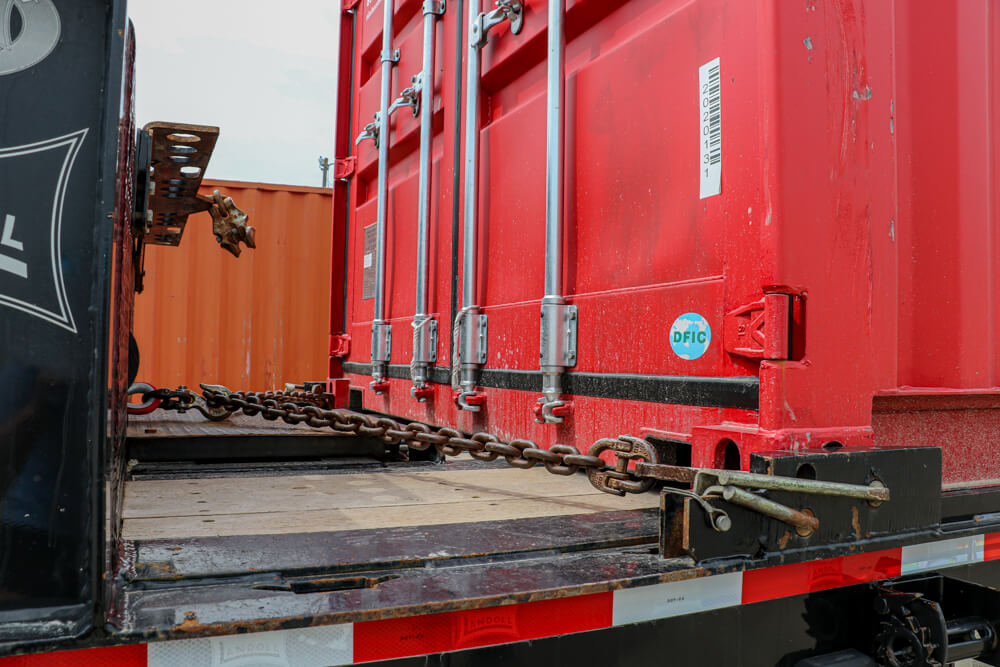

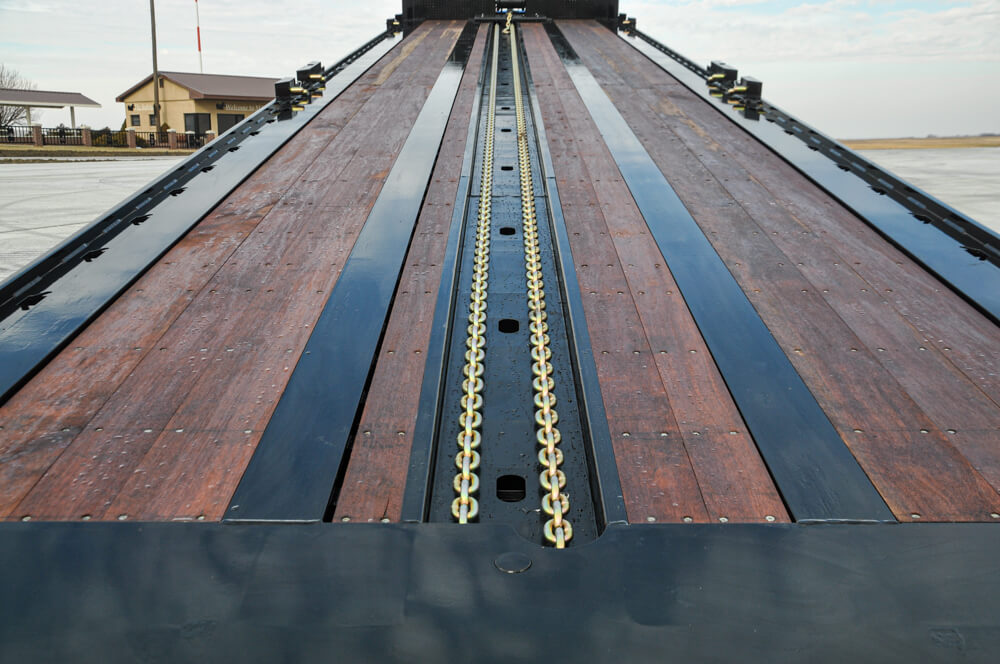

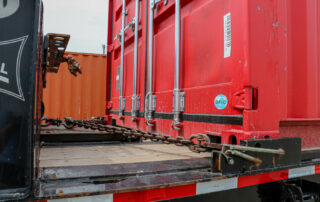

The 317 comes equipped with standard centralized grease, Grote annealed marker lights, Grote “Xtreme” wire harnesses and durable powder coat paint. Popular options include Container Chain Drive, Dual Winches and Dock Level Hydraulics to level the trailer to dock height.
Photos may show optional features.
Features
Frame & General
| Capacity* | 70,000 lbs. |
|---|---|
| Deck Rating | 50,000 lbs. in 10′ |
| Main Frame | Fabricated 80,000 PSI Yield, Four Beam Design |
| Width | 102″ |
| Loaded Deck Height | 38″ |
| Loaded Ground Clearance | 20″ |

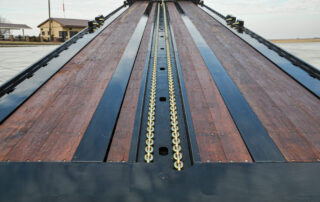

| Decking | 1-3/8″ Apitong Hardwood |
| Slope Drop | 45° |
| Load Angle | 8.5° |
| Crossmembers | Alternating with 4″ and 3″ Junior I-Beam on 8″ Centers |
| Hitch | 2″ Kingpin |
| Pin Setting | 24″ |
| Swing Clearance | 70-1/2″ |

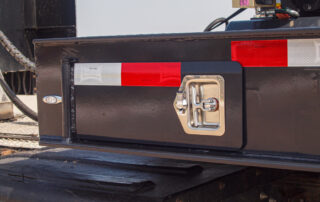

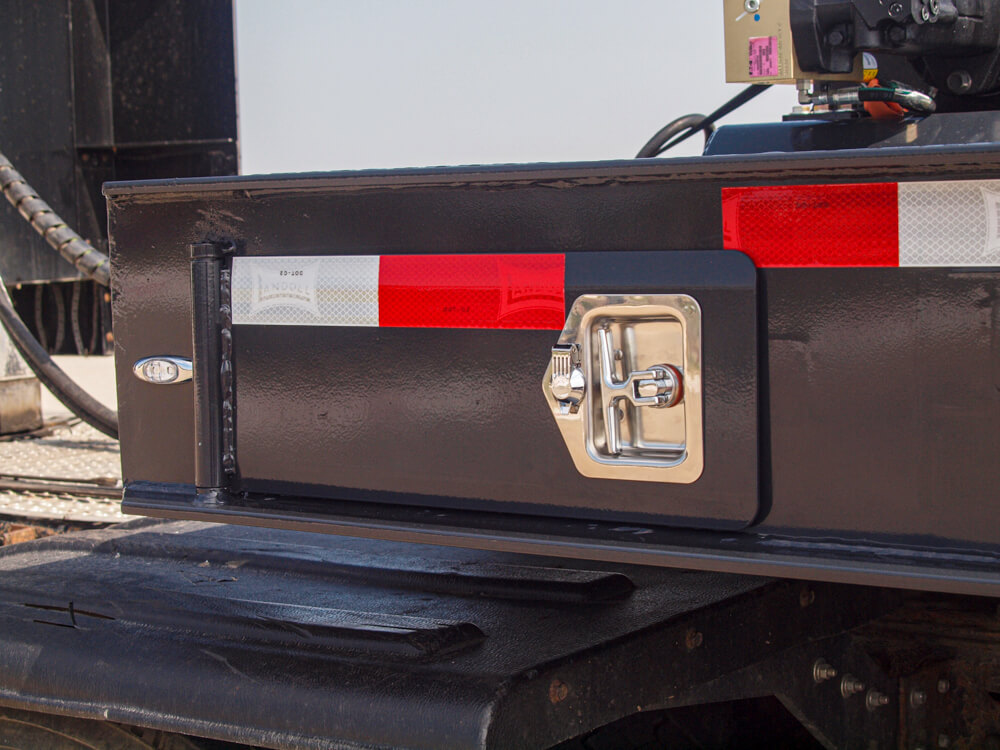

| Tool Box | Twin Side Mounted in Upper Deck with Lockable Doors (7”H x 34”W x 29” D) |

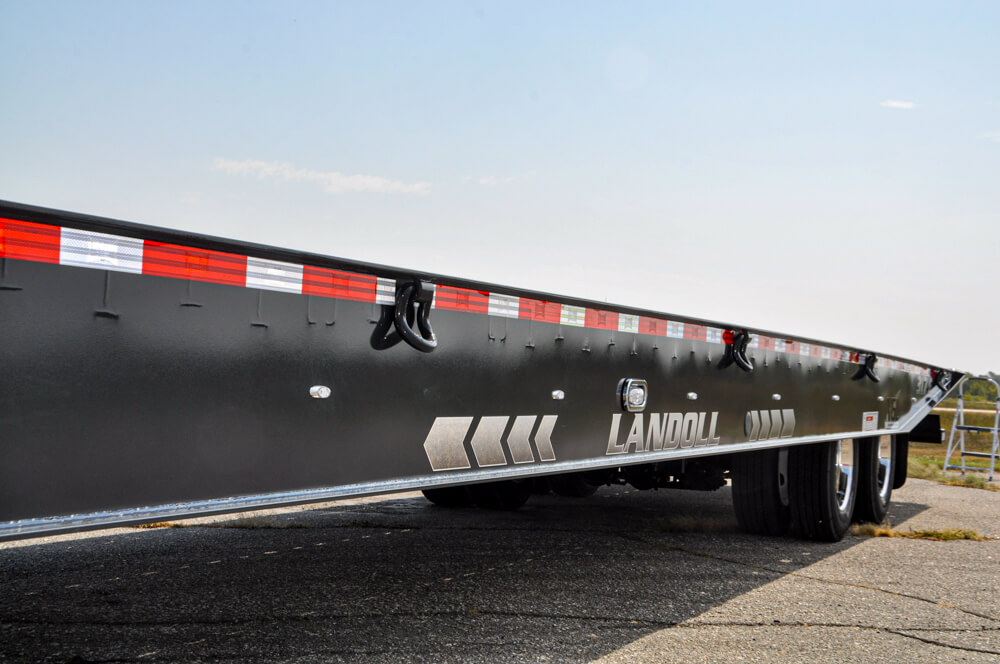

| Tie Downs | Double Keyhole Chain Slots and Stake Pockets |

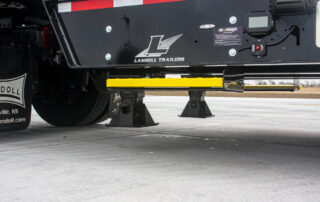

| Parking Stands | Two Speed Landing Gear |

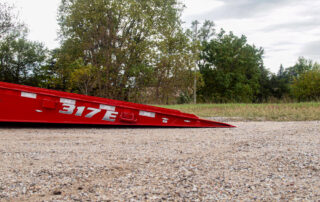

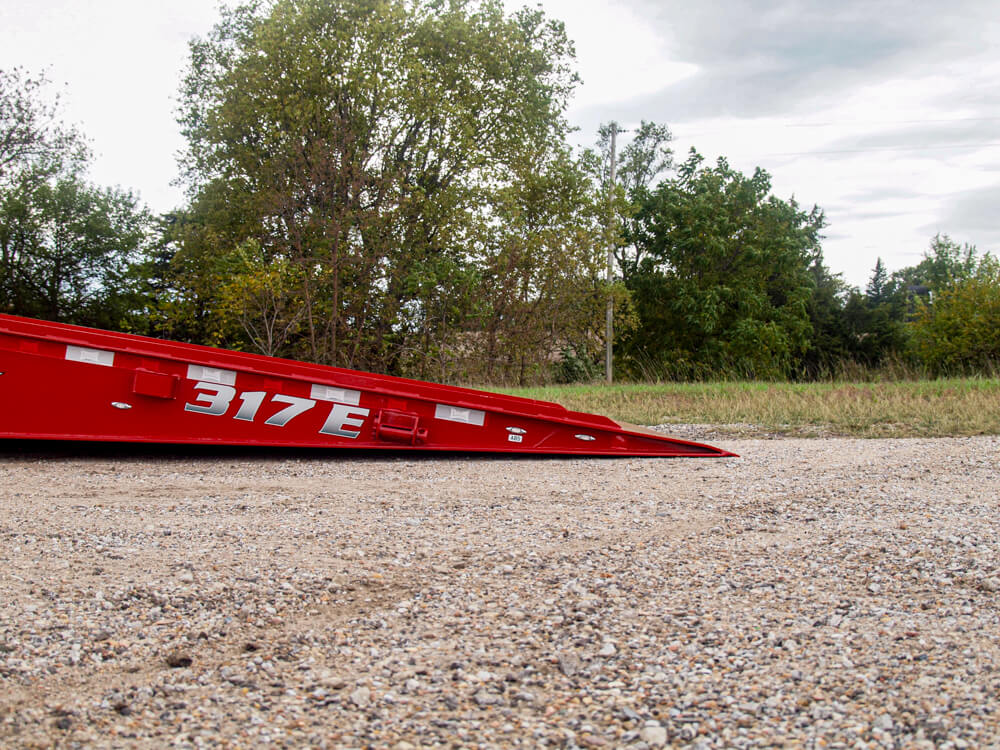

| Approach Plate | Flat Approach with (6) Keyhole Tie Downs |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Suspension & Undercarriage
| Suspension | Air Ride RLU228, 22,500 lb. Capacity |
|---|---|
| Undercarriage | (1) 4″ x 126″ and (2) 4″ x 42″ Cylinders; Powder Coated Black |
| Grease | Centralized Grease System |
| Axles | (2) 25,000 lb. Axles, Dual Tire, Oil Bath Bearings, Automatic Slack Adjusters |
| Brakes | 12.25×7.5 Full Air / Spring Brakes, ABS 4S2M |
| Tires | 235/75R 17.5 LRJ Double Coin Tires |
| Rims | 17.5×6.75 Tubeless Rims |
| Wheels | Hub Pilot / Steel with Outboard Brake Drums |
| Oil Seal Hubs | Internal Mated Assembly |
Hydraulics
| Hydraulic Hook Up | Quick Couplers 2,500 PSI – 20 GPM at Controls, 50 GPM Max |
|---|---|
| Tilt Cylinders | (2) 4″ x 42″ |

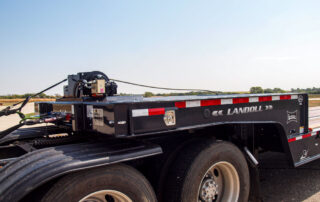

| Hydraulic Winch | 12,000 lb. Worm Gear with Spring Tension and 85′ of 1/2″ Cable |
| Hydraulic Valve Body | Rexroth |
Electrical
| Air / Electrical | 7-Way Receptacle |
|---|---|

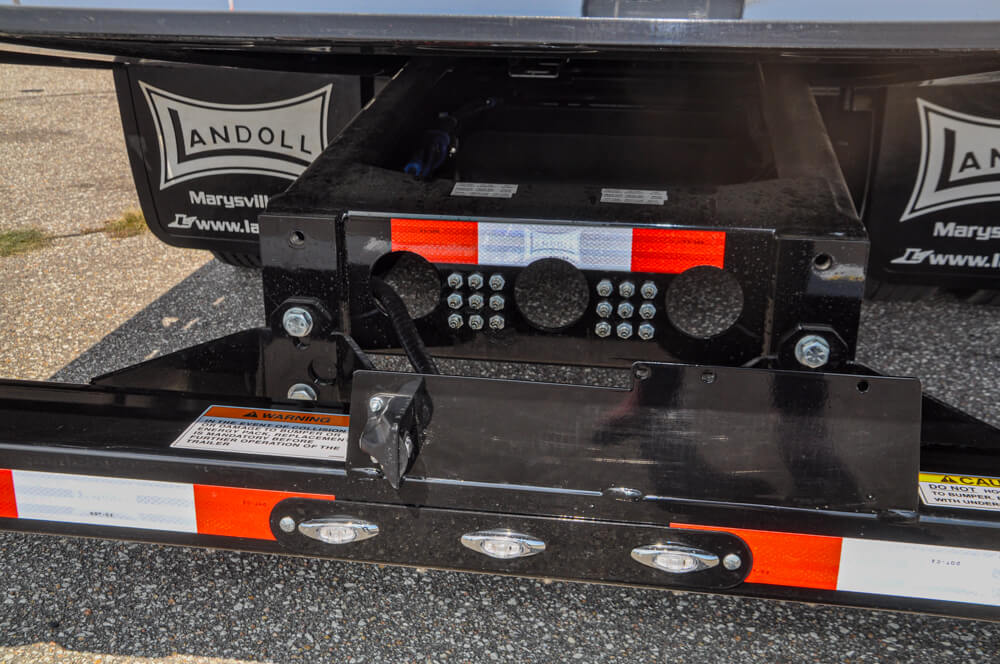

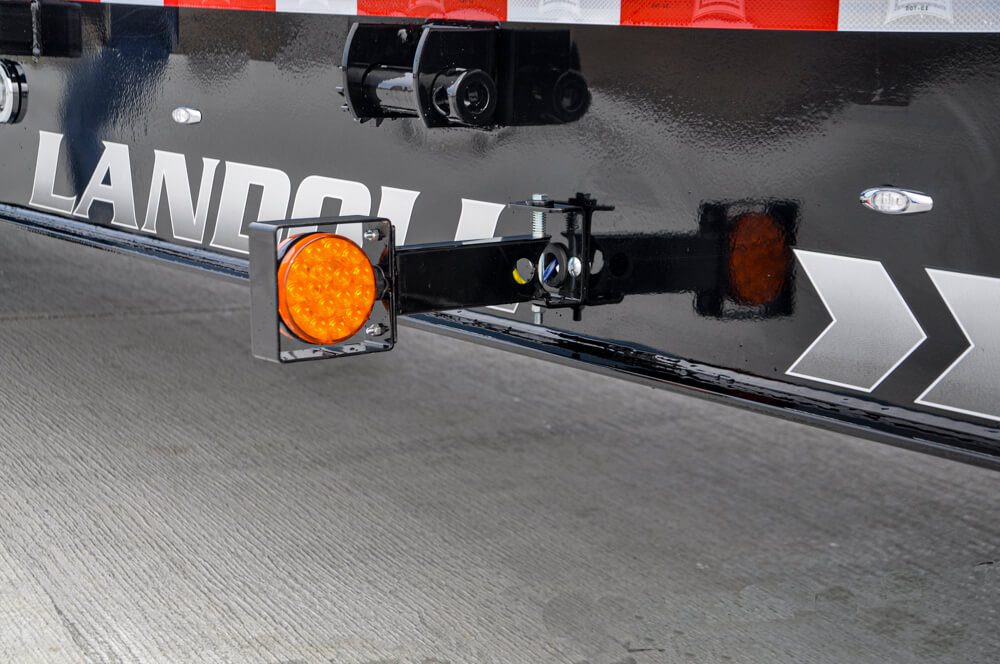

| Lights | Industry Best Grote LED Lighting with Oven Annealed Markers (Up to a 10-year warranty) |
| Wiring Harness | Industry Best Grote Xtreme Harnessing (7-year warranty) |
Finish & Color
| Finish | Steel Grit Shot Blast to Bright Metal |
|---|---|
| Powder Coat Color | TGIC Polyester Powder Coat, White / Black / Yellow / Balboa Blue / Red / Viper Red / Green / Sapphire Blue / Metallic Gray |
| Decals | Hi-Visibility Reflective Package |
Options
Deck and Accessories
| Deck Type | 1/8″ Steel Tread Plate 1/8″ Steel Tread Plate Over Wood |
|---|---|
| Deck Straps | Deck Straps Beside Main Beam (1-1/4″ x 9″)Deck Straps Beside Outer Beam (1-1/4″ x 9″) |
| Toe Board | 3/8″ x 2-1/2″ on Lower Deck |
| Swing Out Outriggers | |
| Chain / Rub Rail – Web Mount | |
| Skid Plate for Container | |
| Lower Deck Bolt-On Toolbox | |
| 27” Aluminum Pull-Out Extensions | |
| Bolt-On Landoll Traction Plate Over Approach | |
| Center Deck Keyhole Tie Downs | |

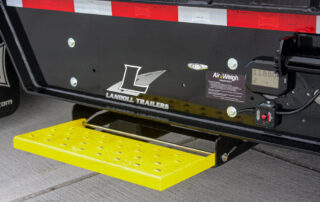

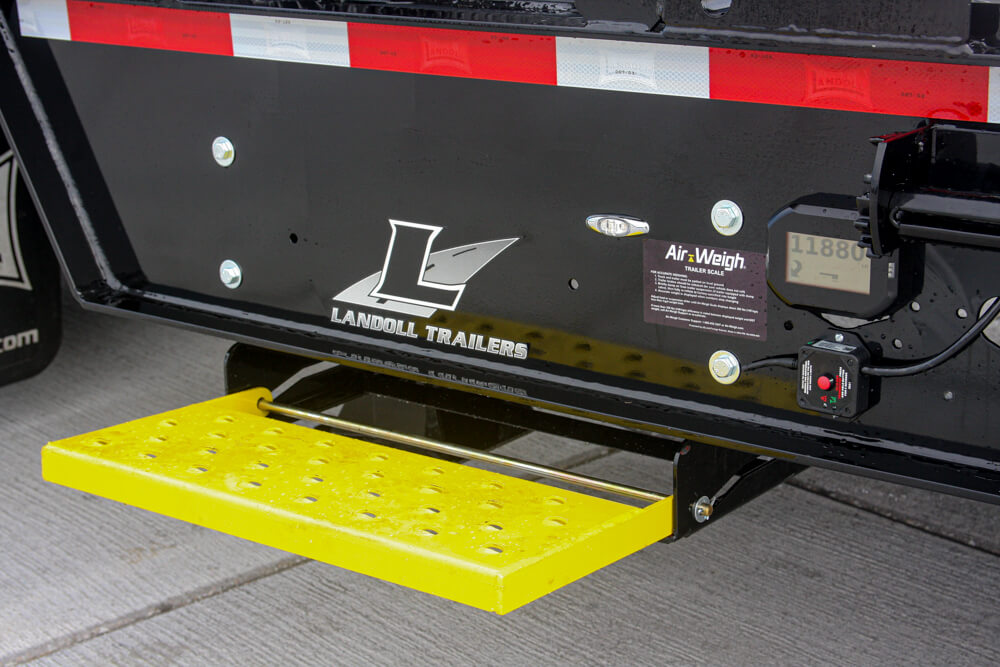

| Pull-Out Step Assembly with Grab Handle Built into Slope | |
| Special Deck Strap Options | |
Bulkheads
| Bulkhead | 16″ / 24″ 2 Position 48″ x 102″ Mesh |
|---|---|
| Note: All Bulkhead options require the 48″ X 102″ Bulkhead | |
| Binder Storage Rack | |

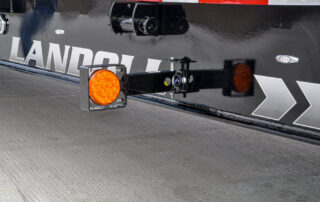

| Aluminum Light Bar with Dual LED Work Lights, S/T/T Lights, Aluminum Chain / Binder Rack | |
| LED Work Lights | |
| Dual LED Strobe Beacons | |
| Spare Tire Carrier | |
Suspension and Undercarriage
| Dock Level Hydraulics – 62,000 lb. | |
|---|---|

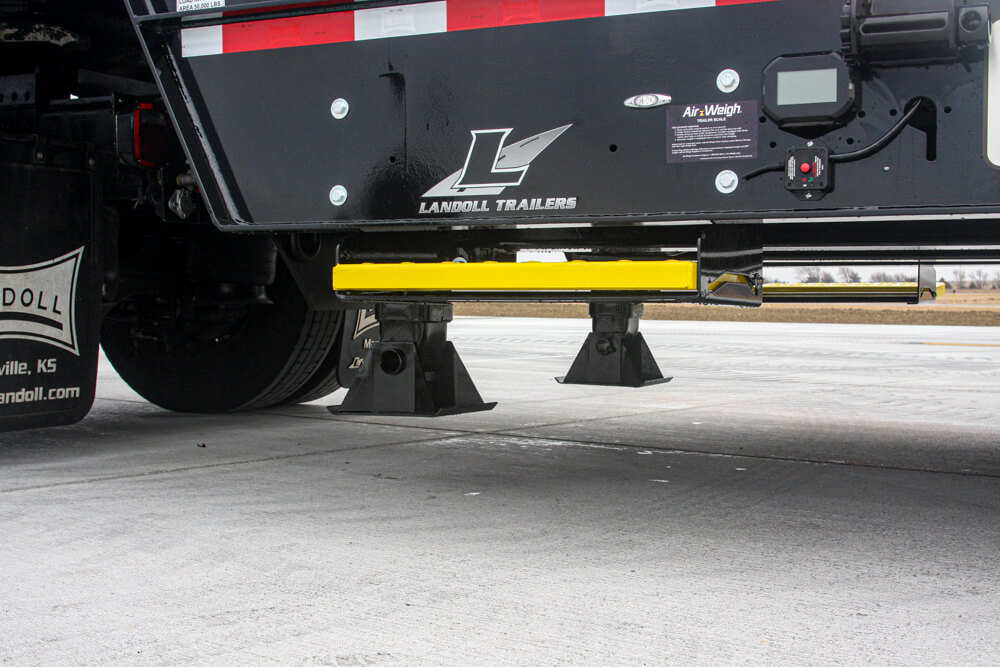

| Bluetooth Digital Scale System | |
| Air Dump Valve |
Parking Stands

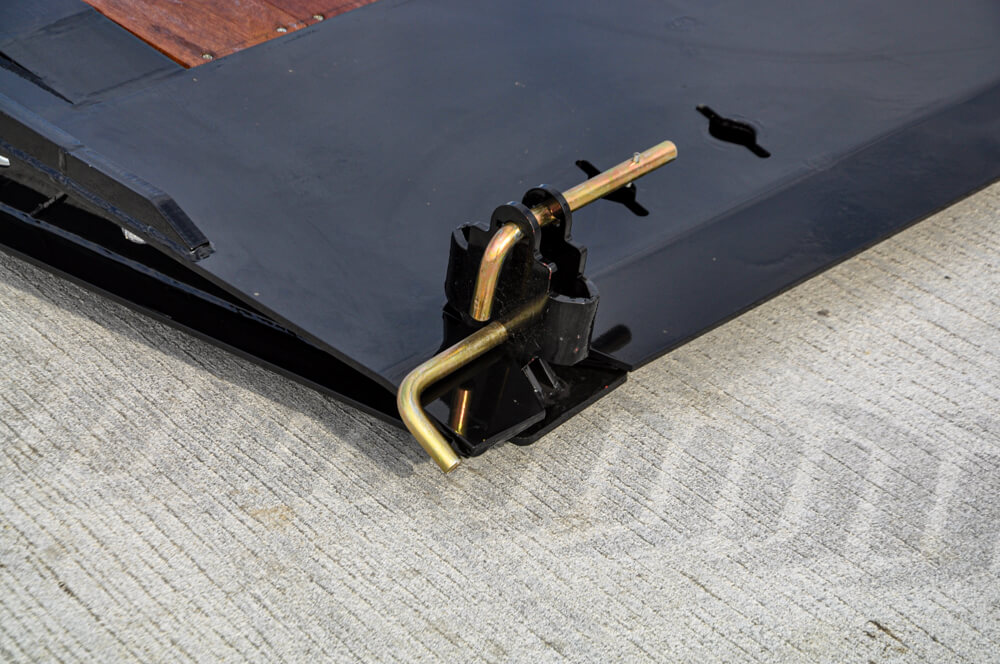

| Pin Drop | |
|---|---|
| Hydraulic |
Ramps
| 5′ Aluminum Ramps-Portable (8,000 lb. Capacity) |
|---|
Tie Down

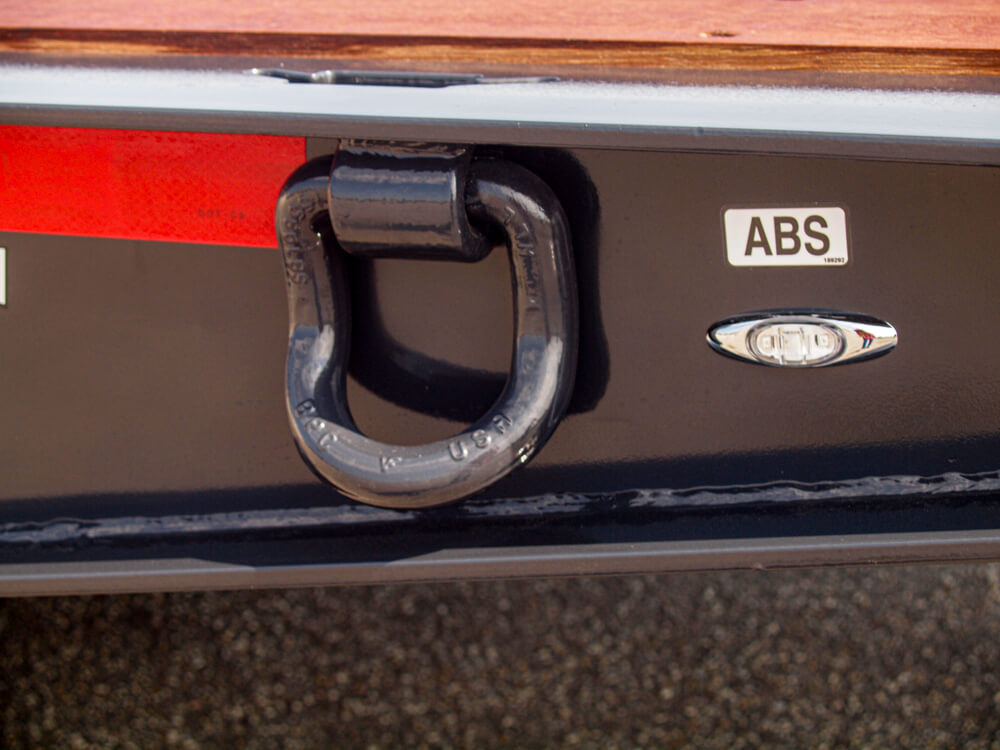

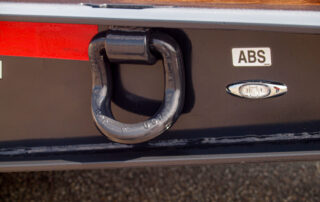

| D-Rings | Flush Mounted Recessed Mounted Bolt-On at Winch |
|---|---|
| Single Slot Ratchet Winch for 4″ Nylon Strap | |
Winch and Accessories

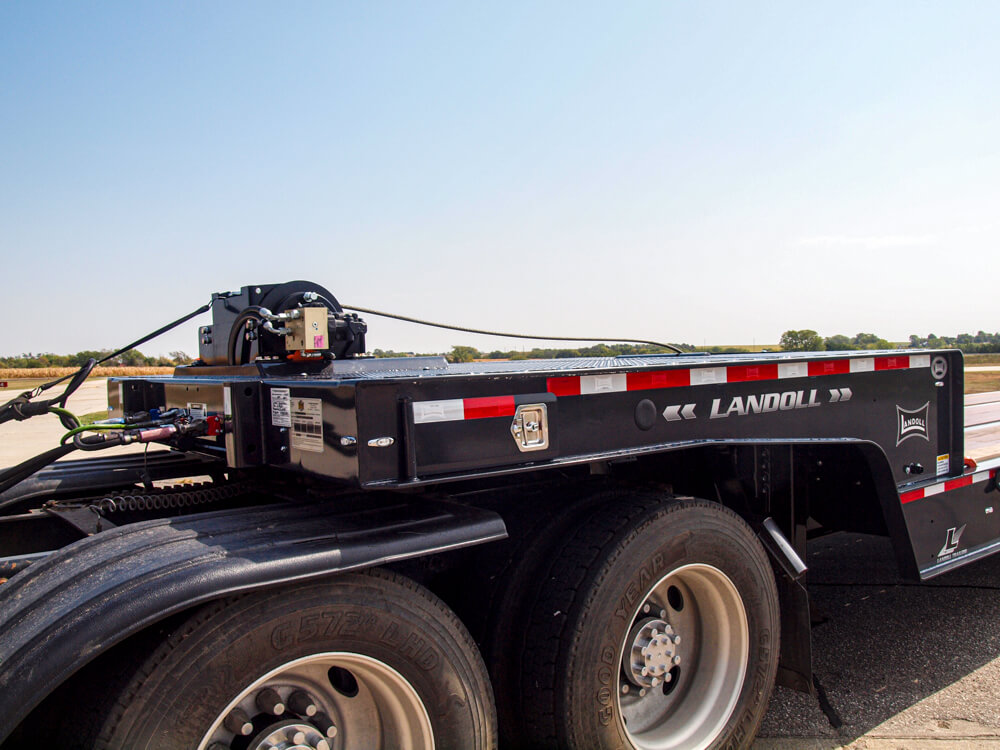

| Winch | 20K Winch – Slope Mounted (Braden) 12K, 20K, 30K Winch – Upper Deck Mounted (Braden, Warn, Ramsey Versions Available) Dual 20k or 30K Winch – Upper Deck Mounted (Warn) |
|---|---|
| Winch Guard | |
| Work lights | |
| Cable Roller Guide (4-Way Rollers) | |
| Upper Deck Slope Wear Protection | Slope Roller |
| Wireless Remote Control | Six Function |
Hydraulic Power Source
| Spare Hydraulic Quick Couplers (1 Male / 1 Female) | |
|---|---|
| Kohler EFI, 25 HP, Gas Powered Hydraulic Engine Package with Cover | Upper Deck Mounted |
Tires and Rims
| 17.5 Machined Aluminum Rim (Priced per Wheel) | |
|---|---|
| 17.5 Polished Aluminum Rim (Priced per Wheel) | |
| 17.5 Dura-Bright Aluminum Rim (Priced per Wheel) | |
| 22.5 Machined Aluminum Rim (Priced per Wheel) | |
| 22.5 Polished Aluminum Rim (Priced per Wheel) | |
| Black Steel and Aluminum Upon Request | |
| Tires | 235/75R 17.5 Continental 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin |
| Spare Tires Available with Rim of Choice | |
| Hubodometer | |
| PSI Tire Inflation System | |
Paint and Special Options
| Hot Dip Galvanizing | |
|---|---|
| Paint Over Galvanizing – Top Surface Only with Standard Colors Only | |
| Paint Over Galvanizing – Sides Only with Standard Colors Only | |
| Wet Paint Colors | Black (Standard), Metallic Gray, White, Red, Viper Red, Green, Balboa Blue, Sapphire Blue, Yellow |
| Special Paint: Contact Factory | |
| Galvanized Bumper | |

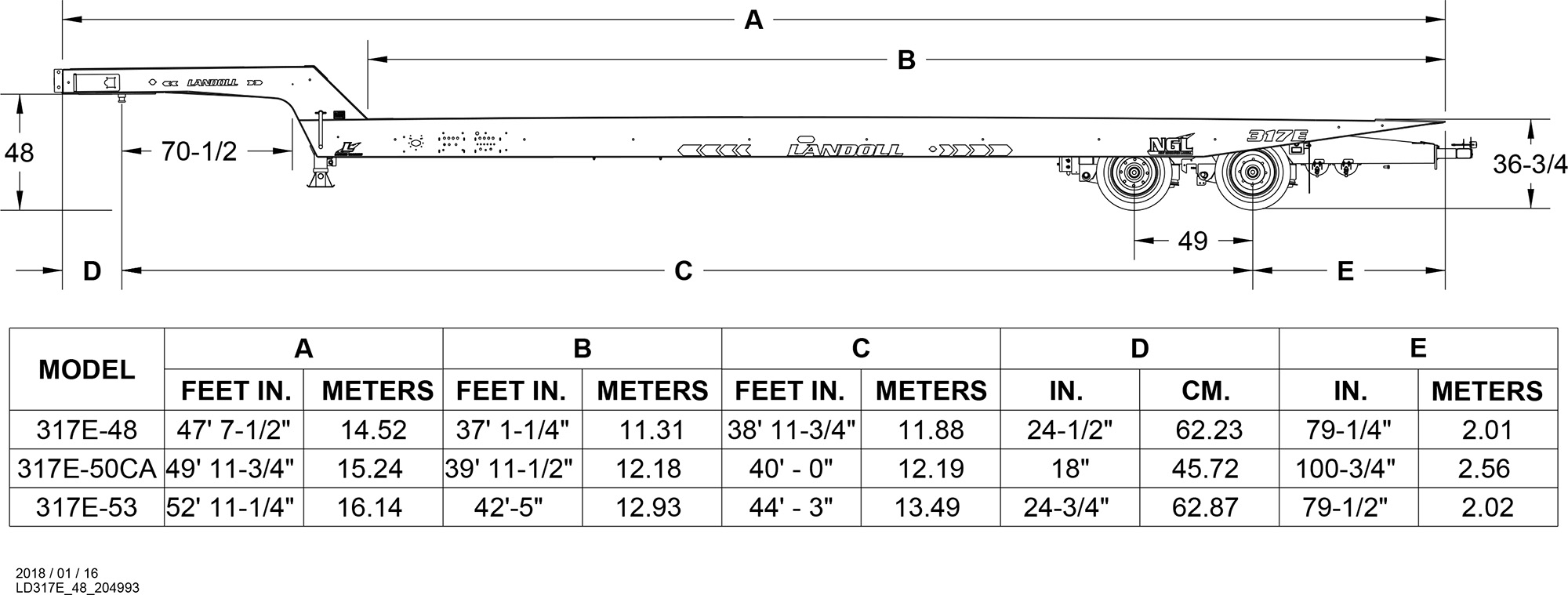

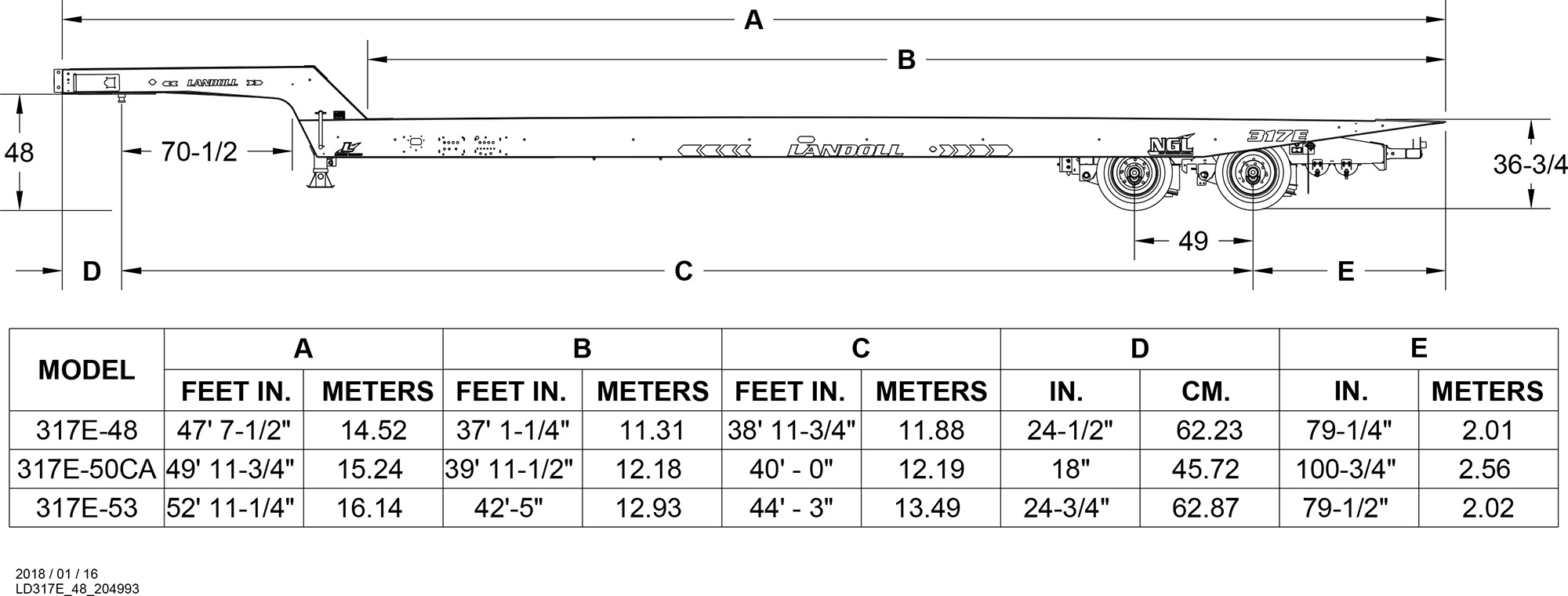

Specifications
| Model | Capacity* | Base Weight | Length | Deck | Axles | Tires & Ply Rating |
|---|---|---|---|---|---|---|
| 317E-48 | 35 Ton | 17,360 lbs. (+/- 3%) | 37′ | 102″ | 2 | (8) 235/75Rx17.5 LRJ Double Coin |
| 317E-50CA | 35 Ton | 17,940 lbs. (+/- 3%) | 39′ | 102″ | 2 | (8) 235/75Rx17.5 LRJ Double Coin |
| 317E-53 | 35 Ton | 19,485 lbs. (+/- 3%) | 42′ | 102″ | 2 | (8) 235/75Rx17.5 LRJ Double Coin |
* Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.
Specifications subject to change without notice.
