Detachable Model 825-AG

previous arrow
next arrow
previous arrownext arrow
Slider

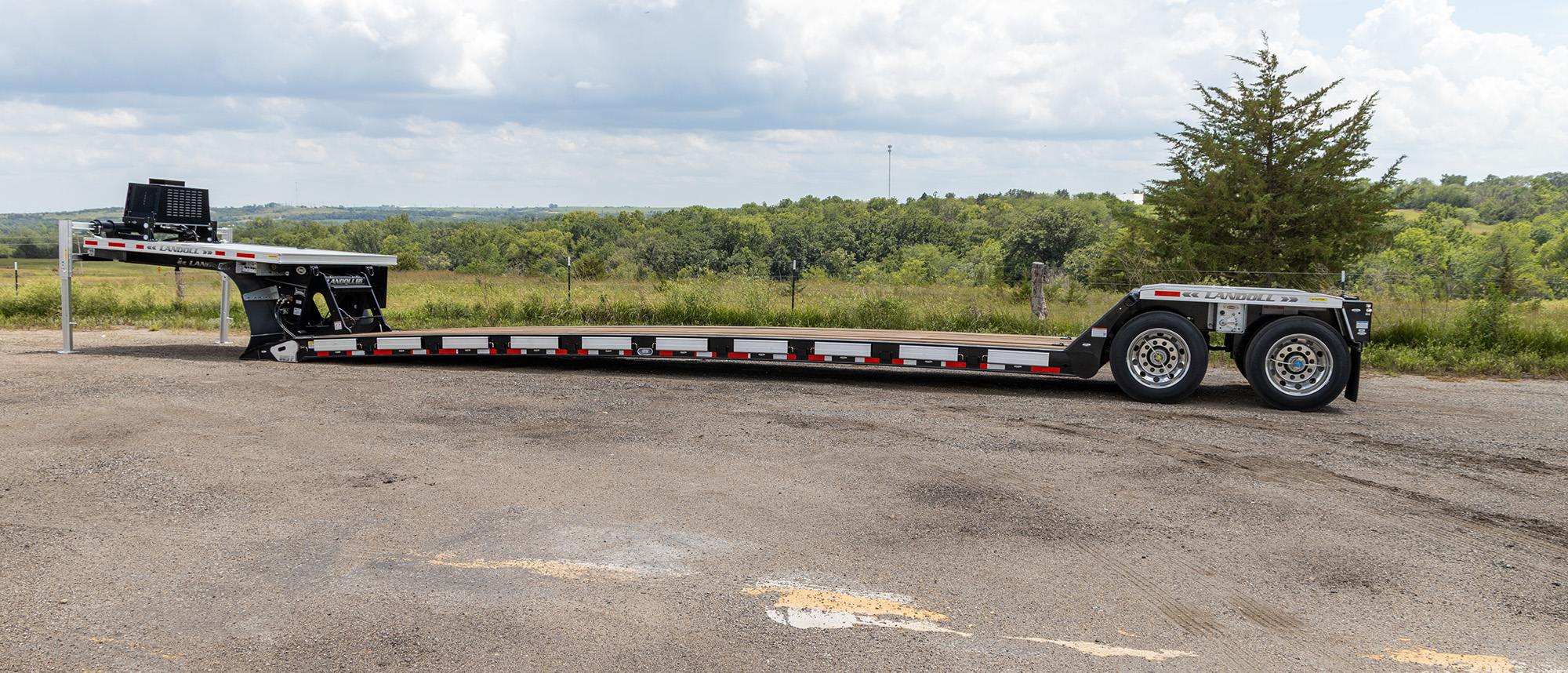

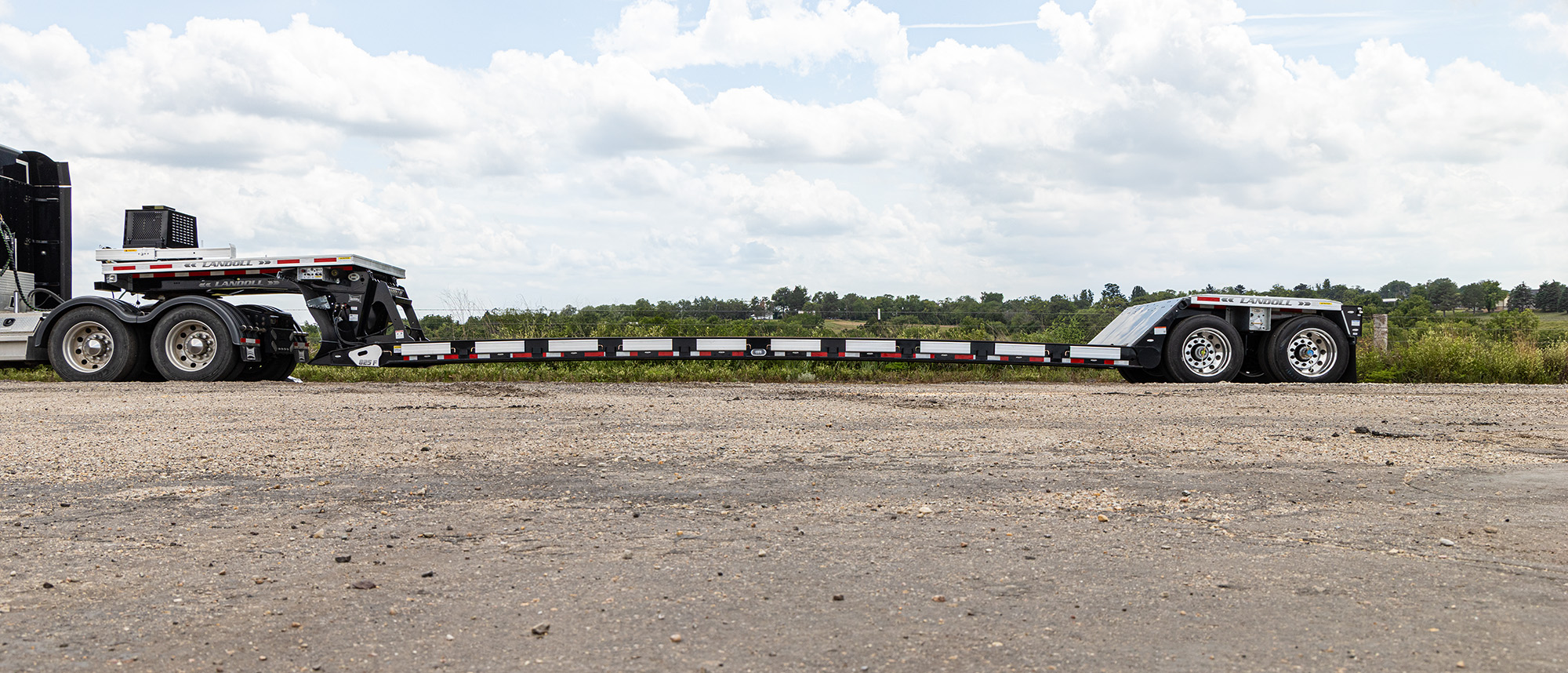

The 800 frame design features a flat deck with a loaded height of 17” off the ground. Coupled with a low tare weight, The 825 can haul the latest combines, tillage, haying equipment and planters with up to 32′ of useable deck space and a capacity of 55,000 lbs.

VIEW LITERATURE
PRINT LITERATURE


Contact Trailer Sales

Proven Solutions

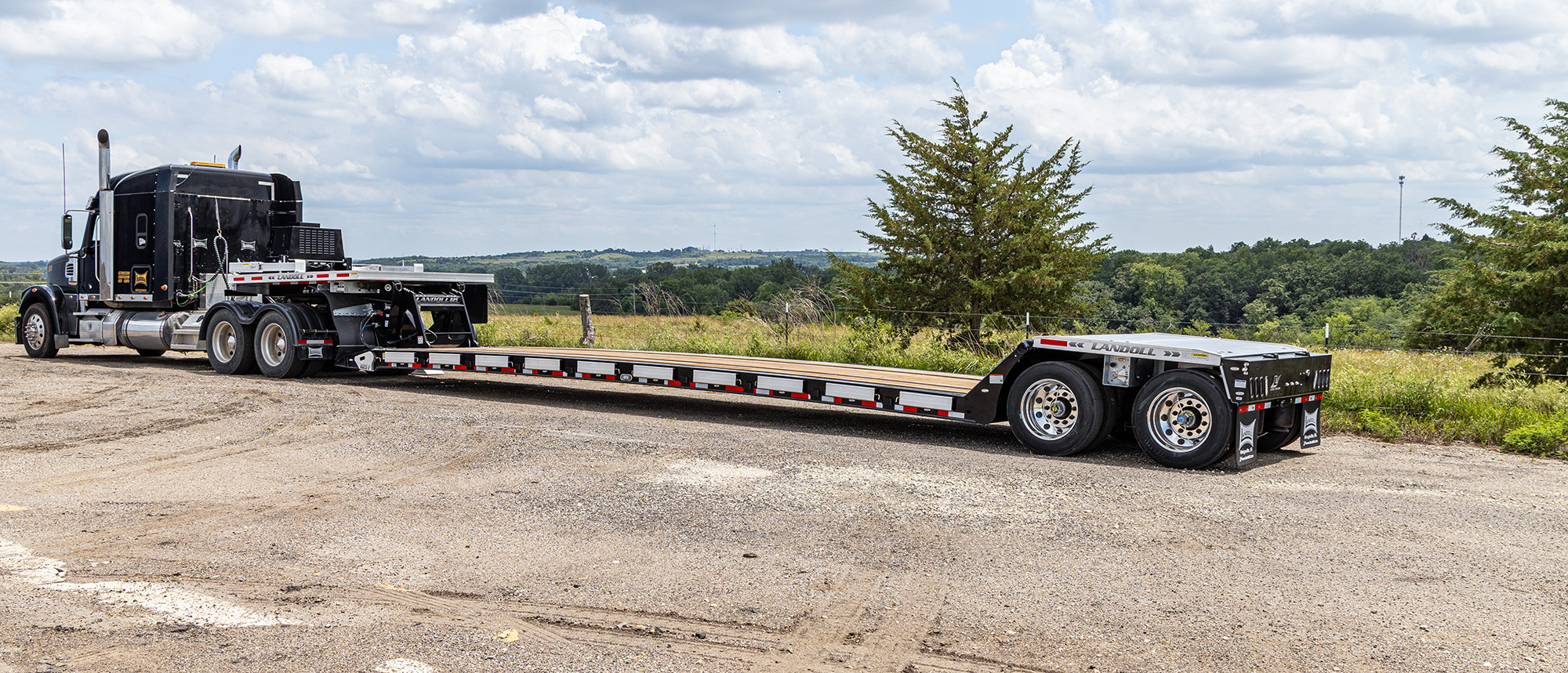

800 Series Ag Detachable Trailers are designed with an innovative four-beam frame and gooseneck give the operator versatility required to safely load and legally transport today’s heavy, wide and tall equipment.

Versatility

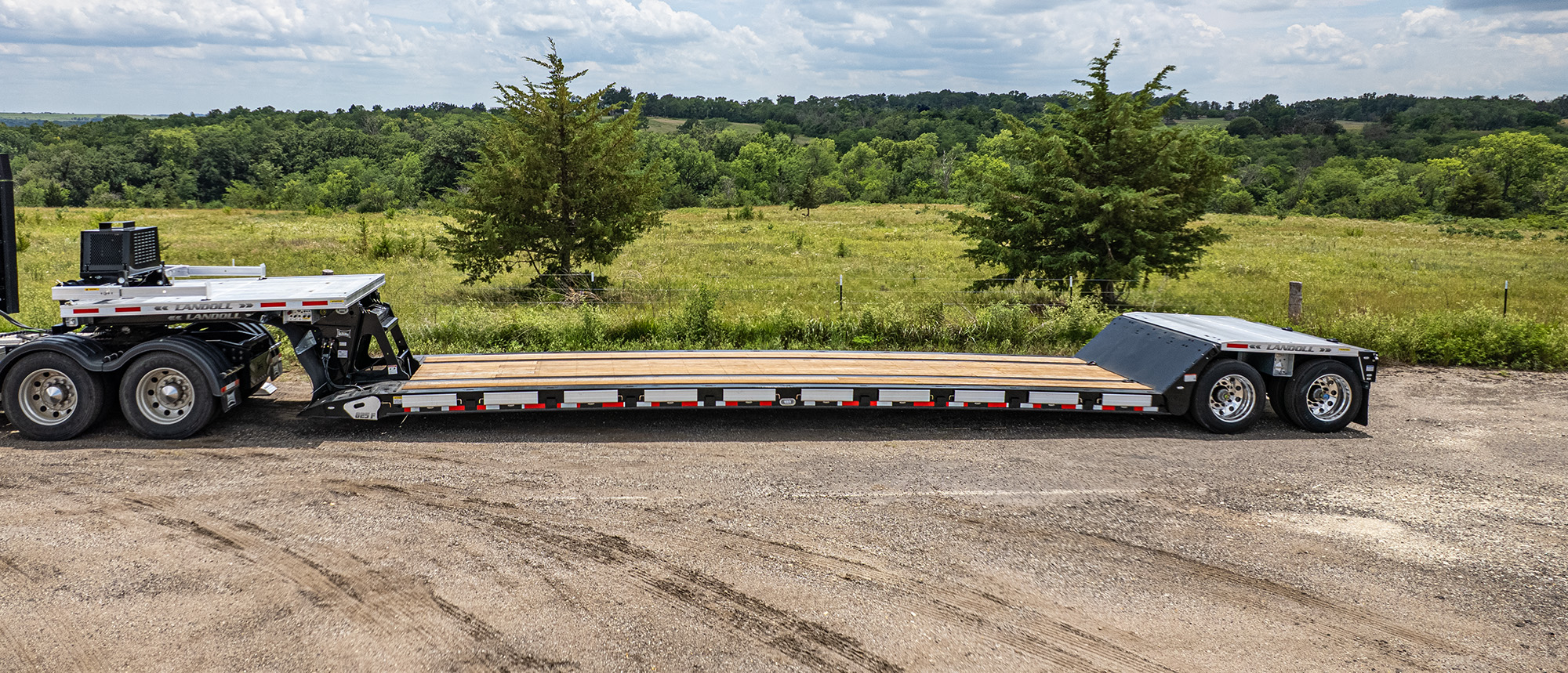

The 800 frame design features a flat deck with a loaded height of 17” off the ground. Coupled with a low tare weight, The 825 can haul the latest combines, tillage, haying equipment and planters with up to 32′ of usable deck space.

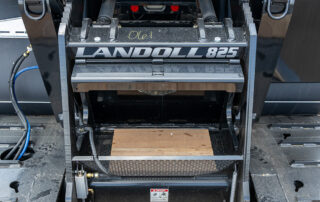

Safety and Patented Gooseneck Design

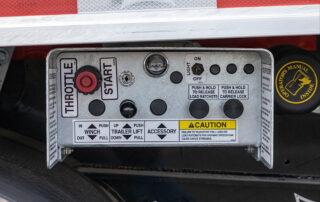

A single hydraulic control lever lowers, detaches and activates the patented gooseneck carrier arms, which allows the ease and simplicity of detaching and loading directly onto the lower deck which is only 11¼” off the ground. You will never have to drive up and over the trunnion again.

Frame and Features

  • *Capacity: 27.5 Ton (55,000 lbs.)
  • Deck Rating: 50,000 lbs. in 16′
  • Estimated Base Weight: 16,400 lbs. (49′) 16,950 lbs. (51′)
  • Main Frame: Fabricated 10″, 100,000 PSI Flange
  • Deck Width: 102″
  • Loaded Deck Height: 17″
  • Loaded Ground Clearance: 7″
  • Decking: 1-1/2″ Apitong, Full Width
  • Crossmembers: 5″ x 3″ High Tensile Tubing on 18″ Centers
  • Hitch: Automatic Gooseneck Lock Engagement
  • Gooseneck: 12′
  • Pin Setting: 15″
  • Swing Clearance: 84″

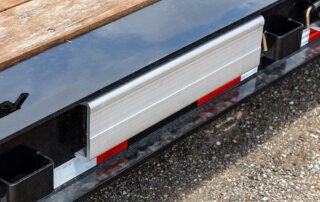

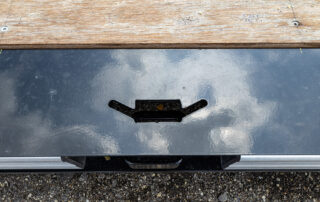

  • Side Extension: 27″ Aluminum Telescoping Extensions (Lower Deck) (Capacity-7,000 lb. EACH Extension)
  • Tool Box: No Standard Tool Box
  • Gooseneck Tie Downs: D-Rings: 2 Each Front Corner; 2 Each Back
  • Lower Deck Tie Downs: Double Keyhole Chain Slots Located on 36″ Centers; Side Mounted Nylon Strap / Chain Tie Downs
  • Rear Trunnion Tie Downs: D-Rings: 2 Each at Base Flush Mounted on Top of Inner Beams; 2 Each at Rear Flush Mounted on Top of Inner Beams; 2 Each at Top of Slope on Outer Web

Supspension and Undercarriage

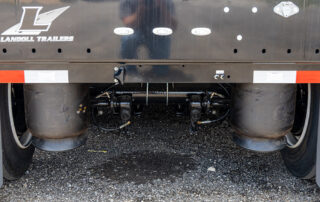

  • Suspension: Neway Air Ride 25,000 lb. Capacity
  • Grease: Centralized Grease System
  • Axles: (2 ) 25,000 lb. Tandem Dual Tire, Oil Bath Bearings
  • Axles Prepped for Air Inflation
  • Brakes: 16.5×7 Full Air / Spring Brakes Both Axles, ABS 4S2M, Automatic Slack Adjusters
  • Tires: 255/70R 22.5 LRH Double Coin
  • Rims: 22.5×8.25
  • Wheels: Hub Pilot / Steel Outboard Hubs
  • Oil Seal Hubs: Internal Mated Assembly

Hydraulics

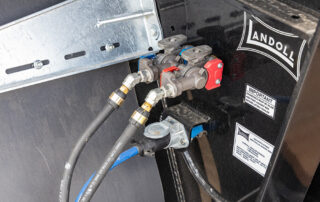

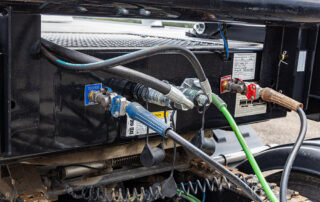

  • Hydraulic Hook Up: Quick Couplers 2,500 PSI – 20 GPM at Controls, 50GPM Max
  • Cylinders: Gooseneck Cylinders Horizontally Mounted

Electrical

  • Electrical: 7-Way Receptacle
  • Air: Glad Hand

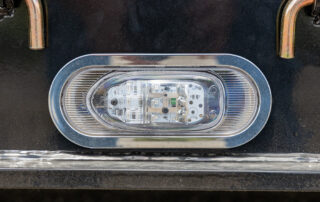

  • Lights: Grote Clear Lens LED with Chrome Bezel (10-Year Warranty)
  • Wiring Harness: Grote “Xtreme” Wiring Harness (7-Year Warranty)

Finish and Color

  • Finish: Steel Grit Shot Blast to Bright Metal
  • Powder Coat: TGIC Polyester Powder Coat, White / Black / Yellow / Blue / Red / Green / Sapphire Blue / Dark Gray
  • Decals: Hi-Visibility Reflective Package

Gooesneck:

  • Removable Aluminum Upper Deck (P/N 171909) Full Width for 12′ Gooseneck (124″L x 102″W) 10,000 lb. Capacity
  • Weld on Steel Sub-Frame with Wood Decking and Rub / Chain Rail
  • 12,000 lb Warn Planetary Winch, Single Speed with Air Release (Wet Kit Only)
  • 20,000 lb Warn Planetary Winch, 2 Speed with Air Release (Wet Kit Only)
  • 30,000 lb Warn Planetary Winch, 2 Speed with Air Release (Wet Kit Only)
  • Bolt-On Chain and Binder Rack Between Lock Arms
  • Gooseneck Mud Flaps
  • Wireless Remote Control for Winch
  • Bolt-On Lockable Tool Box (Curb Side) (14″W x 22.5″D x 24″H)
  • Gooseneck LED Lights (2 Stop / Turn / Tail and 1 White Work Light per Side)

Trunnion:

  • Removable Aluminum Rear Deck (P/N 105190) (73″L x 102″W) 10,000 lb. Capacity
  • Weld-On Steel Sub-Frame with Wood Decking and Rub / Chain Rail
  • Slope Cover Assembly (P/N 135811) (Non-Weight Bearing) with 2 Access Holes for Tie Down D-Rings
  • Traction Bars for Trunnion Slope (Track Area)

Deck and Accessories:

  • Delete 27″ Aluminum Telescoping Side Extensions – 28′ Deck
  • Delete 27″ Aluminum Telescoping Side Extensions – 30′ Deck
  • Aluminum Ladder Ramp Assembly 70″ Long, (One Pair, P/N 125836) “Lower Deck to Rear Trunnion” (For Trailers Built After 11-03) 9,000 lb. Capacity (4,500 Each)
  • Adjustable Aluminum Ladder Ramps with Rod Bracket, Full Width (P/N 148786 and 110527)
  • D-Ring Bolt-On (4 Available Locations on Gooseneck, 2 on Trunnion) (Each)
  • Flush Mounted “Angled” D-Ring (Each)
  • Recessed Mounted D-Rings
  • 3/8″ x 5″ Double Keyhole Strap Full Length Lower Deck (Each)
  • Ramp for Loading of Low Ground Clearance Equipment (40,000 lb. Capacity)
  • Front Pullout Filler
  • Aluminum Header Rack
  • Removable Aluminum Rear Deck (P/N 105190) (73″L x 102″W) 10,000 lb. Capacity

Accessories:

  • Flag and Banner Package (6 Flags and 2 Over Width Banners)
  • Magnetic LED Amber Warning Lights (360° Flashing, Battery Powered)
  • Four Corner Light Package – Consult Factory
  • Strobing Light Package in Bumper
  • Battery Back-Up for Strobe Lights

Suspension and Undercarriage:

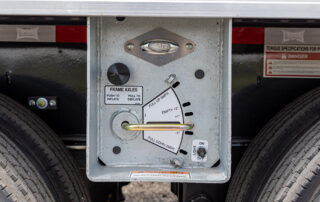

  • Air Raise and Lower Valve
  • Air-Weigh Digital Scale System LoadMaxx (Trailer Only)
  • LoadMaxx ComLink Cable Kit (Cable Connects Trailer Unit to Tractor Scale)

Hydraulic Power Source:

  • Wet Kit for Tractor (Includes 30 Gallon Steel Tank)
    • Shipped Loose with Trailer or Factory Installed
  • Hydraulic Quick Couplers 1 Male / 1 Female (Matches Trailer) (P/N 105902)
  • Polished Aluminum Hydraulic Tank, (19″W x 24D”) (Side Mount) in Lieu of Standard
  • 13 HP Honda Engine Package Gooseneck Mounted with Cover (Net 10.2 HP)

Tire and Rims:

  • 255/70R 22.5 Continental Tires in Lieu of Standard
  • 255/70R 22.5 Michelin Tires in Lieu of Standard
  • Spare 255/70R 22.5 Double Coin Tire and Hub Pilot Type Rim
  • Spare 255/70R 22.5 Continental Tire and Hub Pilot Type Rim
  • Spare 255/70R 22.5 Michelin Tire and Hub Pilot Type Rim
  • 22.5 Aluminum Wheel (10-Bolt Polished) in Lieu of Standard (Each)
  • 22.5 Aluminum Wheel (10-Bolt Machined) in Lieu of Standard  (Each)
  • 22.5 Aluminum Wheel (10-Bolt Dura-Brite) in Lieu of Standard (Each)
  • Hubometer
  • Crossfire Air Equalizers (Price per Axle)
  • Pressure Guard Tire Inflation (2 Axles) N/A
  • Meritor Tire Inflation / PSI (2 Axles)
  • Shock Straps (Price per Axle)
  • Dust Shields (Price per Axle)

Special Prices:

  • Hot Dip Galvanizing (Lower Deck and Trunnion) G/N Powder Coated Only
  • Paint Over Galvanizing – Sides Only of Lower Deck and Trunnion Slope with Standard Colors Only

Specifications Table

Model Capacity Base Weight Deck Axles Tires and Ply Rating
Model Capacity Base Weight Deck Axles Tires and Ply Rating
825-49 27.5 Ton 16,640 lbs. (+/- 3%) 102″x28′ Lower 2 (8) 255/70R 22.5 LRH
825-51 27.5 Ton 19,950 lbs. (+/- 3%) 102″x30′ Lower 2 (8) 255/70R 22.5 LRH

Line Drawing

Printable Line Drawing

825TrailerLineDrawings-LD825DUS825D-30-51-0615

*Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations.

Specifications subject to change without notice.
